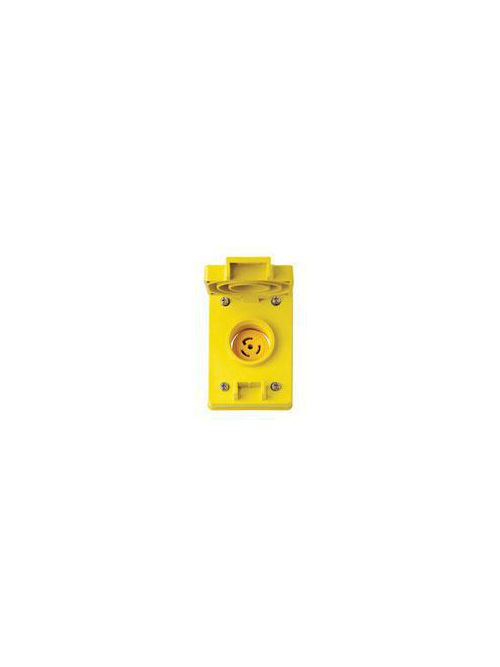

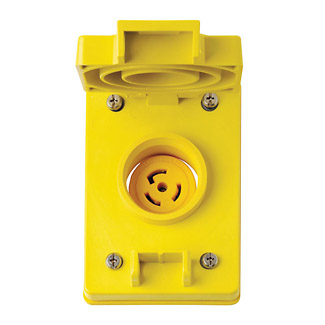

LEV 69W75 CORR.REST. COV GASK
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$191.09/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 69W75
North Coast Part # 267609

Specifications

Material Specifications

  • Line Contacts: Nickel-Plated Brass .040 Thick
  • Face Material: Nylon
  • Terminal Screws: Nickel-Plated Brass 10-32
  • Base Material: Nylon
  • Grounding Screw: Nickel-Plated Brass 8-32
  • Yoke: Nickel-Plated Brass .050 Thick

Standards and Certifications

  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • UL498: File E13399
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13399
  • NEMA: WD-6

Electrical Specifications

  • Phase: 3-Phase
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Current Limiting: Full Rated Current
  • Dielectric Voltage: Withstands 2000V per UL498

Product Features

  • Amperage: 30 A
  • Warranty: Limited Lifetime Warranty
  • Face Material: Nylon
  • NEMA: L15-30R
  • Color: Yellow
  • Brand: Wetguard
  • Strap Material: Nickel-Plated Brass
  • Country Of Origin: Mexico
  • Base Material: Nylon
  • Device Type: Locking Outlet
  • Pole: 3
  • Wire: 4
  • Voltage: 250 VAC
  • Grounding: Grounding
  • Termination: Back
  • Standards and Certifications: UL/CSA

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, White-Neutral
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: 14-8 AWG

AC Horsepower Ratings

  • At Rated Voltage: 3 HP

Environmental Specifications

  • Environment: Wet
  • Flammability: Rated V-0 per UL 94
  • Operating Temperature: -40°C to 60°C

Categories

Overview

UPC 07847707511
Item Long Description 30-Amp, 250 Volt- 3PY, Flush Mounting Locking Receptacle, Industrial Grade, Grounding, Wetguard with Cover, Yellow
GTiN 00078477075111
Warranty Length Lifetime Limited
Size 4.63 H x 3.13 W IN
Color Yellow
Operating Temperature -40 C
Voltage 250 Volt
Type Single Locking Receptacle With Watertight Cover
Applications Commercial
Mounting Type Box
Country of Origin Mexico
Wire Size 14-8 AWG
Standard ANSI C-73,CSA,UL
Connection Type Back Wired
Horsepower 3 hp
Base Material Nylon
Face Material Nylon
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 4
NEMA L15-30R,WD-6
Number of Phases 3 Phase
Dielectric 2000 V
Environment Wet
Flamability Class Rated V-0 Per UL 94
Grounding Grounding
TC Connection Back Wired
Amperage 30 Amp
Dielectric Strength 2000 (Min.)
Environmental Conditions Flammability (Rated V-0 per UL94)
Number of Poles 3 Pole
Number of Wires 4
Temperature Rise 200 %
Device Type Locking Outlet
Sub Brand Wetguard
