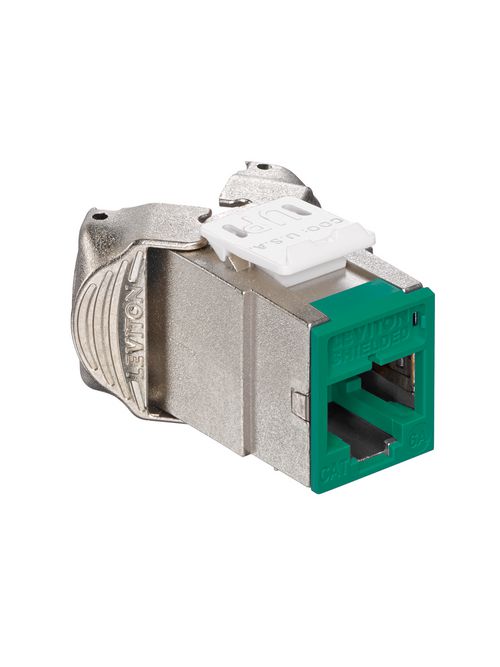

LEV 6ASJK-RV6 JACK AX1 C6A SHLD GN
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$28.10/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 6ASJK-RV6
North Coast Part # 1685465

Features

  • Independently tested and guaranteed to exceed all component, permanent link, and channel margins
  • Patented Retention Force Technology (RFT) protects against tine damage from 4- or 6-pin plugs
  • Shielding provides EMI/RFI protection, signal isolation, and excellent alien crosstalk (AXT) suppression
  • Unique design supports tool-free termination/re-termination and requires no specialized termination tool
  • Short connector design supports a wider range of applications (e.g. shallow boxes, enclosures, bend radius, etc.)
  • Terminates from 26 to 22-gauge solid or stranded conductors for use on various cable types
  • Robust IDCs can withstand 20 re-termination cycles and connector contacts are tested for 750 plug-mating cycles to ensure system longevity
  • Available in 13 ANSI/TIA-606-B compatible colors for color coding or organization
  • Interchangeable icons (voice, data, A/V, and blank, color coded to match the jack face) are available for easy identification and tracking of data, voice, or other functions
  • Jack with internal shutter is available to protect against dust and debris

Specifications

Product Features

  • Category Rating: Cat 6A
  • Color: Green
  • Brand: Atlas-X1
  • Country Of Origin: United States
  • Shielding: Shielded

videos

Overview

GTiN 00078477696316
Color Green
Type Shielding, Standard
Applications For Government, Healthcare, Manufacturing, Transportation, Gaming, and other Environments
Country of Origin USA
Standard CULus Listed
Family Brand Name Leviton
Category Type CAT 6A
Sub Brand Atlas-X1, QuickPort
Product UPC 07847769631
Material Zinc Die Cast
Mounting Type Surface
Cable Type Category 6a
Cable Size 26-22 AWG
Temperature Rating -10 to 60 C
Blade Dimensions 1.31 in L x 0.68 in W x 0.90 in H
Environmental Conditions -40 to 70 C Storage
Used With 10GBASE-T Networks
