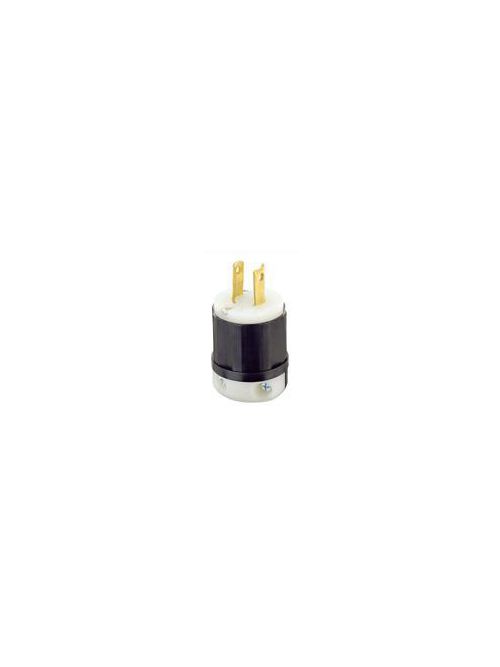

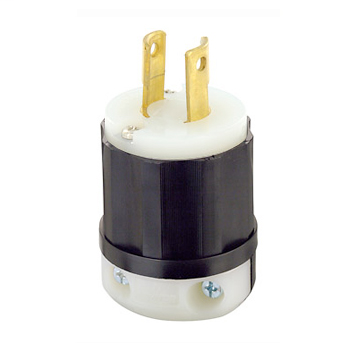

LEV 7102-C PLUG POLARIZED 20A-250V
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$21.97/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 7102-C
North Coast Part # 552699

Specifications

Material Specifications

  • Wire Module: Nylon
  • Color: Black-White
  • Clamp Insert: Nylon
  • Blades/Contacts: Solid Brass
  • Back Cover: Thermoplastic
  • Terminal Screws: Brass
  • Body Material: Impact Modified Nylon
  • Cord-Clamp: Nylon
  • Assembly Screws: Steel, Zinc Plated

Standards and Certifications

  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • UL498: File E13393
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13393
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 20 A
  • Wire: 2
  • Dielectric Voltage: Withstands 2000V per UL498
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C at 250 cycles OL at 200 pct rated current
  • Pole: 2
  • Voltage: 250 VAC
  • Grounding: Non-Grounding

Product Features

  • Color: Black-White
  • Brand: Black and White
  • Country Of Origin: United States
  • NEMA: L2-20P

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Cord Range: .245 - .700
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: 18-10 AWG

AC Horsepower Ratings

  • At Rated Voltage: 2 HP

Environmental Specifications

  • Environment: Dry
  • Flammability: Rated HB or better UL94
  • Operating Temperature: -40°C to 60°C

Categories

Overview

UPC 07847751562
Item Long Description 20 Amp, 250 Volt, Plug, Nylon, Polarized, Industrial Grade, Black-White
GTiN 00078477515624
Size 1.53 Dia x 2.71 H IN
Color Black,White
Operating Temperature -40 C
Voltage 250 Volt
Type Industrial Grade
Material Nylon
Applications For Industrial use
Mounting Type Cable
Country of Origin USA
Wire Size 18-10 AWG
Standard ANSI C-73
Blade Type Solid Brass
Horsepower 2 hp
Body Material Impact Modified Nylon
Screw Type Steel,Zinc-Plated
Family Brand Name Leviton
Wire Count 2
NEMA L2-20P,WD-6
Dielectric 2000 V
Environment Dry
Flamability Class Rated HB Or Better UL94
Grounding Non-Grounding
Contact Material Solid Brass
Amperage 20 Amp
Environmental Conditions Operating Temperature Range (-40 to 60) C
Number of Poles 2 Pole
Number of Wires 2
Temperature Rise 200 %
Sub Brand Black & White
Conductor Size 18-10 AWG
Temperature Rating -40 to 60 C
Blade Dimensions 1.53 in dia x 2.71 in H
