LEV 7251-C GY NOCSA PLG 4PO4WI 18-2
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$113.69/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 7251-C
North Coast Part # 544346

Specifications

Material Specifications

  • Color: Yellow
  • Blades/Contacts: Solid Brass
  • Body Material: Super Tough Nylon
  • Assembly Screws: Steel, Zinc Plated

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498: File E13399
  • ANSI: C-73
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 20 A
  • Wire: 4
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
  • Pole: 4
  • Current Limiting: Full Rated Current
  • Voltage: 120/208 VAC
  • Grounding: Non-Grounding
  • Phase: 3-Phase WYE

Product Features

  • Warranty: 10-Year Limited
  • NEMA: 18-20P
  • Color: Yellow
  • Standards and Certifications: UL
  • Country Of Origin: United States
  • Voltage: 120/208 VAC

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Cord Range: .625 - 1.375
  • Product ID: Ratings are permanently marked on device
  • Wire Gauge: 18-10 AWG
  • Terminal Accom.: Up to 4 AWG

AC Horsepower Ratings

  • At Rated Voltage: 2 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847780874

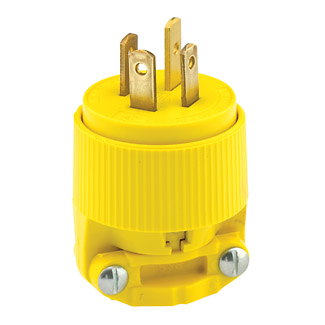

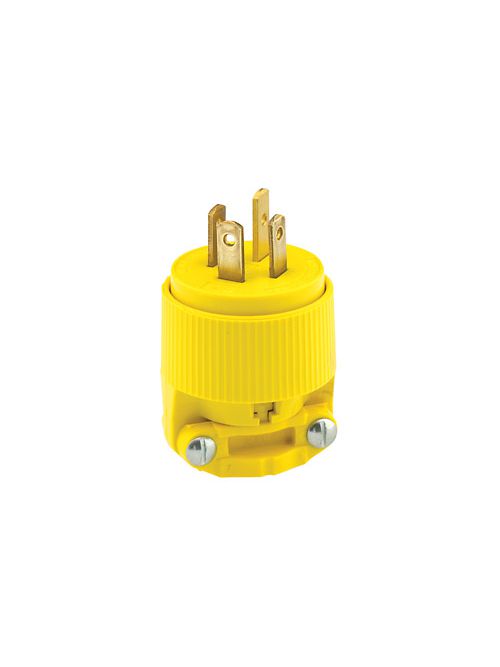

Item Long Description 20-Amp, 120/208 Volt- 3PY, Straight Blade, Plug, Industrial Grade, Non-Grounding, Yellow
GTiN 00078477808740
Warranty Length 10 yr
Color Yellow
Operating Temperature -40 C
Voltage 120/208 Volt
Type Straight Blade Plug
Material Super Tough Nylon
Applications Industrial
Country of Origin USA
Wire Size .687-.875 in
Standard ANSI C-73
Blade Type Solid Brass
Horsepower 2 hp
Body Material Super Tough Nylon
Screw Type Steel,Zinc-Plated
Family Brand Name Leviton
Wire Count 4
NEMA 18-20P,WD-6
Number of Phases 3 Phase
Dielectric 2000 V
Certifications UL
Flamability Class Rated V-2 Per UL 94
Grounding Non-Grounding
Amperage 20 Amp
Environmental Conditions Operating Temperature Range (-40 to 60) C
Number of Poles 4 Pole
Number of Wires 4
Temperature Rise 150 %
Sub Brand Black & White
