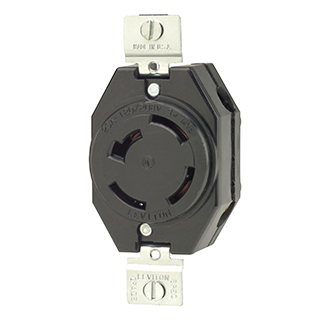

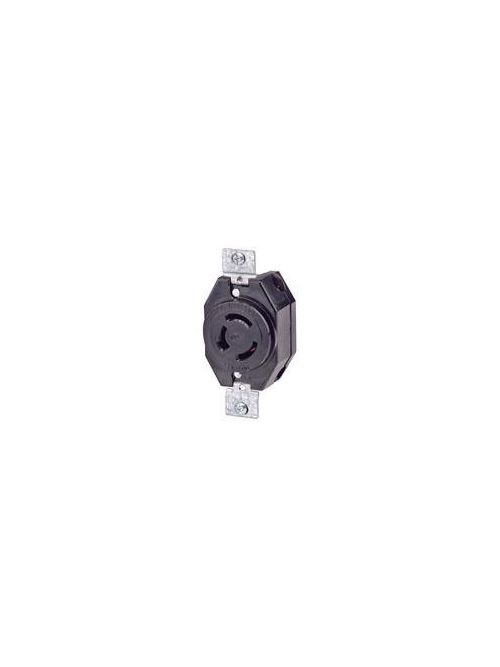

Leviton 7410-B 120/208 Volt Star 20 Amp 4-Pole 4-Wire Non-NEMA Black Nylon Non-Grounding Flush Mount Locking Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 11 to 17 Days
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 7410-B
North Coast Part # 546452


Material Specifications

  • Line Contacts: Brass .040 Thick
  • Face Material: Nylon
  • Terminal Screws: Brass 10-32
  • Strap Material: Nickel-Plated Brass
  • Base Material: Nylon
  • Grounding Screw: Brass 8-32
  • Yoke: Nickel-Plated Brass .050 Thick

Standards and Certifications

  • Warranty: Limited Lifetime Warranty
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • UL498: File E13399
  • ANSI: C-73
  • NEMA: WD-6

Product Features

  • Color: Black
  • Country Of Origin: Mexico
  • Voltage: 120/208 VAC

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: 18-10 AWG
  • Termination: Back & Side

Electrical Specifications

  • Amperage: 20 A
  • Wire: 4
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 4
  • Current Limiting: Full Rated Current
  • Voltage: 120/208 VAC
  • Grounding: Non-Grounding
  • Phase: 3-Phase WYE

Environmental Specifications

  • Environment: Dry
  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C


UPC 07847782163
Item Long Description 20 Amp, 120/208 Volt- 3PY, Flush Mounting Locking Receptacle, Industrial Grade, Non-Grounding, Black
GTiN 00078477821633
Warranty Length Lifetime Limited
Size 3.62 H x 1.70 W x 1.43 D IN
Color Black
Operating Temperature -40 C
Voltage 120 Volt
Type Locking Single Receptacle
Material Nylon
Applications Commercial
Mounting Type Box
Country of Origin Mexico
Wire Size 18-10 AWG
Standard ANSI C-73
Connection Type Back Wired,Side Wired
Base Material Nylon
Face Material Nylon
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 4
Number of Phases 3 Phase
Dielectric 2000 V
Environment Dry
Flamability Class Rated V-2 Per UL 94
Grounding Non-Grounding
TC Connection Back Wired;Side Wired
Amperage 20 Amp
Dielectric Strength 2000 (Min.)
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 4 Pole
Number of Wires 4
Temperature Rise 200 %
