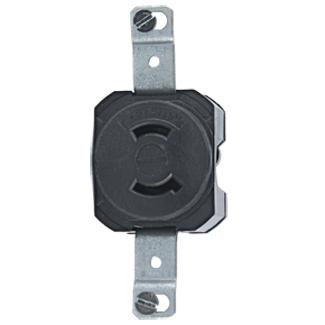

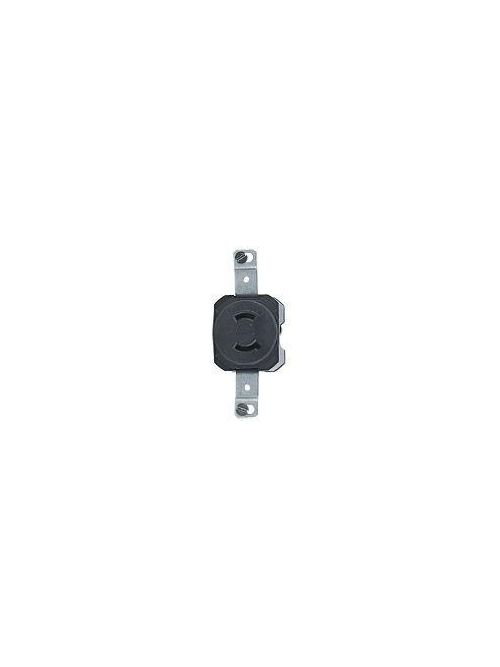

Leviton 7535 125 Volt 15 Amp 2-Pole 2-Wire NEMA L1-15R Black Nylon Non-Grounding Locking Receptacle
$55.32/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 7535
North Coast Part # 876952

Specifications

Material Specifications

  • Strap Material: Zinc-Plated Steel
  • Contact - Spring Value: .031" Brass
  • Color: Black
  • Cover Material: Nylon
  • Ground Contacts: Brass
  • Base Material: RTP
  • Grounding Screw: Brass
  • Terminal Screws: Brass 8-32
  • Mounting Screws: Zinc-Plated Steel 8-32
  • Clamp Nuts: Brass

Mechanical Specifications

  • Terminal ID: Brass-Hot, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 18-10 AWG

Product Features

  • Color: Black
  • Country Of Origin: Please Contact Customer Service.
  • NEMA: L1-15R

Electrical Specifications

  • Amperage: 15 A
  • Wire: 2
  • Dielectric Voltage: Withstands 2000V per UL498
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Voltage: 125 VAC
  • Grounding: Non-Grounding

Environmental Specifications

  • Environment: Dry
  • Operating Temperature: -40°C to 75°C

Overview

UPC 07847783569
GTiN 00078477835692
Color Black
Operating Temperature -40 C
Voltage 125 Volt
Type Locking Single Receptacle
Material Nylon
Applications Commercial
Mounting Type Box
Wire Size 18-10 AWG
Standard NOM Certified (057),NEMA (WD-1, WD-6),CSA C22.2 No. 42 (File LR-406),ANSI (C-73),UL Fed Spec WC-596 (File E13399)
Base Material RTP
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 2
NEMA L1-15R
Dielectric 2000 V
Environment Dry
Grounding Non-Grounding
Amperage 15 Amp
Dielectric Strength 2000 (Min.)
Environmental Conditions Flammability (Rated V-2 per UL94),Flammability (Rated V-0 Per UL94)
Number of Poles 2 Pole
Number of Wires 2
Temperature Rise 200 %
Cover Material Nylon
