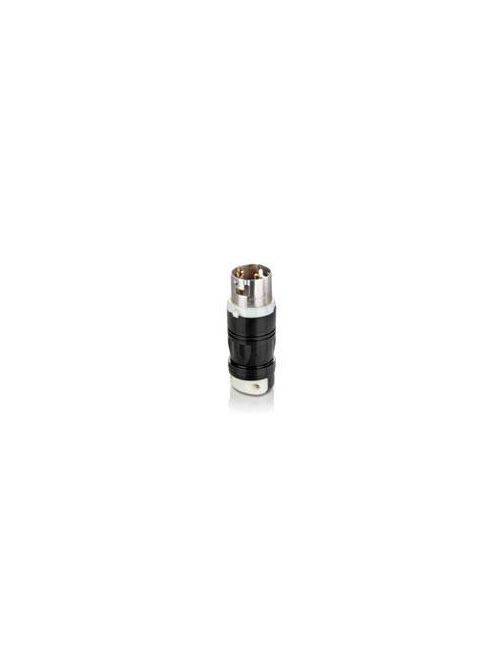

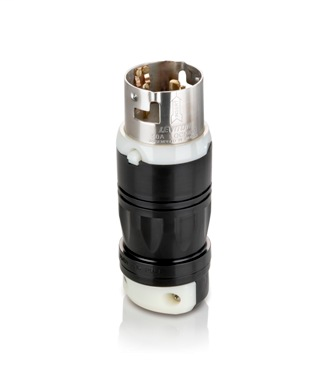

LEV 7765C #2CD/POWER LKG PLUG

Specifications

Material Specifications

• Plug Blade: 0.1000inch thick Brass
• Color: Black-White
• Ground Post: Brass
• Standard Cable Clamp: Nylon
• Terminal Set Screw: SS 302/304
• Terminal Block: 0.062inch thick Copper
• Housing Material: Nylon
• Ground Shunt: Bronze
• Dust Shield: Santoprene TPE
• Plug Blade Shroud: SS 302/304
• Cable Clamp Screw: Philips Head, SS 304
• Assembly Screws: Brass
• Wiring Chamber: Nylon
• Face Module: Nylon

Standards and Certifications

• Warranty: Lifetime Limited
• NOM: 057
• UL 498: File E13399
• CSA C22.2 No. 42: File 152105
• RoHS: Compliant

Product Features

• Color: Black-White
• Device Type: Locking Plug
• Brand: Black and White
• Country Of Origin: Mexico
• NEMA: Non-NEMA

Mechanical Specifications

• Terminal ID: X, W, Y, Z and Green for ground
• Cord Range: .680 - 1.125
• Product ID: Ratings and Catalogue No. molded into face and stamped into shroud
• Terminal Accom.: #10 min to #4max AWG Solid or Stranded Wire

Electrical Specifications

• Amperage: 50 A
• Wire: 4
• Maximum Working Voltage: 250V DC/600V AC as rated
• Current Interrupting: Certified for current interrupting at full rated current
• Temperature Rise: Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
• Pole: 3
• Voltage: 250 VDC/600 VAC
• Grounding: Grounding
• Dielectric Voltage Withstand: 2000V minimum per UL 498

Environmental Specifications

• Environment: Dry
• Flammability: UL94V-2
• Operating Temperature: -40°C to 75°C
