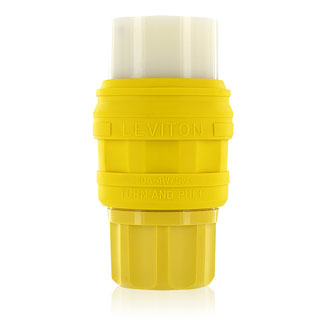

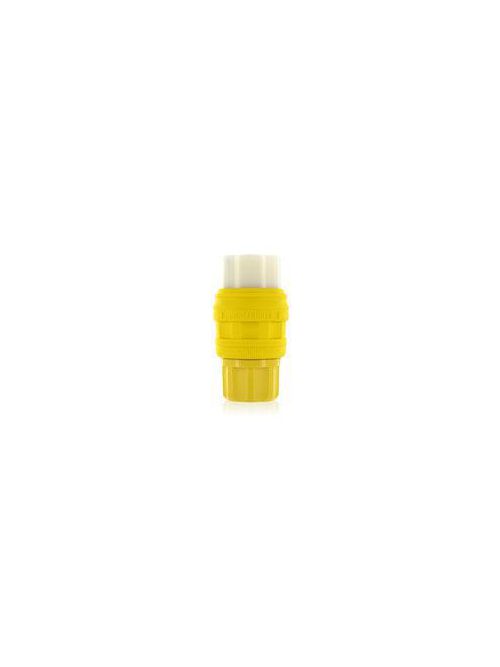

LEV 78W76-C YL WGRD LCK CONN L16-30
Product image thumbnail 0
Product image thumbnail 1
$188.52/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 78W76-C
North Coast Part # 1095986

Specifications

Material Specifications

  • Terminal Screws: Electroless Nickel-coated Brass
  • Blades/Contacts, Terminal Clamps: Electroless Nickel-coated Brass
  • Bushing: Santoprene TPV
  • Body Material: Nylon
  • Husk: Santoprene TPV
  • Compression Nut: Nylon
  • Strain Relief Clamp: Nylon
  • Assembly Screws: Stainless Steel, Non-Magnetic
  • Wiring Module: Nylon

Standards and Certifications

  • ANSI: C-73
  • UL: 498
  • CSA: C22.2 No. 42
  • NEMA: WD-6
  • NOM: 057

Product Features

  • Color: Yellow
  • Device Type: Locking Connector
  • Brand: Wetguard
  • Country Of Origin: United States
  • NEMA: L16-30R

Mechanical Specifications

  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Cord Grip Range (in): .625-1.125
  • Terminal Accom.: #12 AWG to #8 AWG

Electrical Specifications

  • Amperage: 30 A
  • Wire: 4
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 3
  • Current Limiting: Full Rated Current
  • Voltage: 480 VAC
  • Grounding: Grounding
  • Phase: 3-Phase

Environmental Specifications

  • Environment: Wet
  • Flammability: Rated V-2 per UL 94 (wiring module)
  • Operating Temperature: -40°C to 60°C
  • Enclosure Rating: NEMA 4, 4X, 12 IEC IP66

videos

Overview

UPC 07847752519
GTiN 00078477525197
Size 2.75 Diameter X 4.68 L IN
Color Yellow
Operating Temperature -40 C
Voltage 480 Volt
Type Locking,Watertight Connector
Material TPV
Cord Type SO,SOO,ST,STO
Applications For Industrial
Mounting Type Cable
Country of Origin USA
Wire Size 12-8 AWG
Standard ANSI C-73
Connection Type Screw Terminal
Body Material Nylon
Family Brand Name Leviton
Wire Count 4
NEMA L16-30R,WD-6
Number of Phases 3 Phase
Dielectric 2000 V
Environment Wet
Flamability Class Rated V-2 Per UL 94
Grounding Grounding
TC Connection Screw Terminal
Actuator Non-Magnetic,Stainless Steel
Amperage 30 Amp
Environmental Conditions Watertight
CSA C22.2 No. 42
Number of Poles 3 Pole
Number of Wires 4
Temperature Rise 200 %
Device Type Locking Connector
Sub Brand Wetguard
Conductor Size 12-8 AWG
Grade Industrial
Wire Type SO, ST, STO, SOO
Temperature Rating -40 to 60 C
Blade Dimensions 2.75 in dia x 4.68 in L
