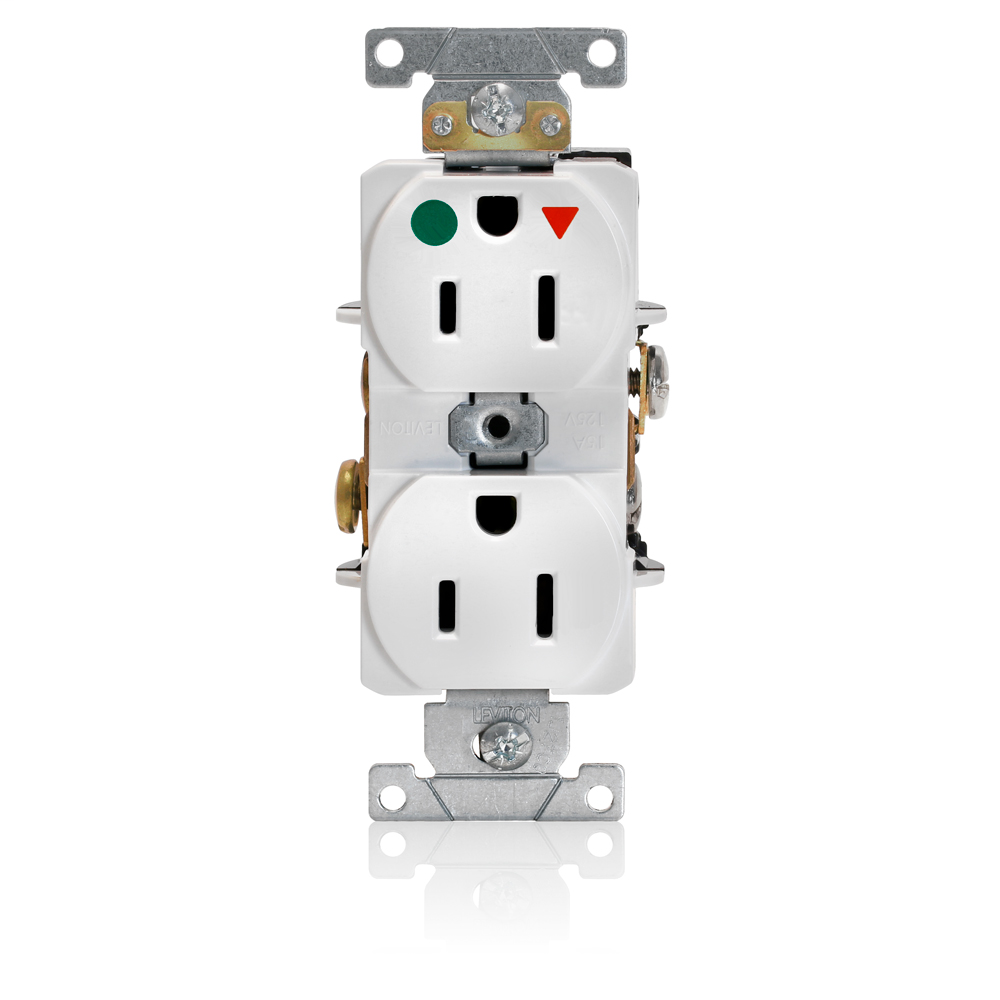

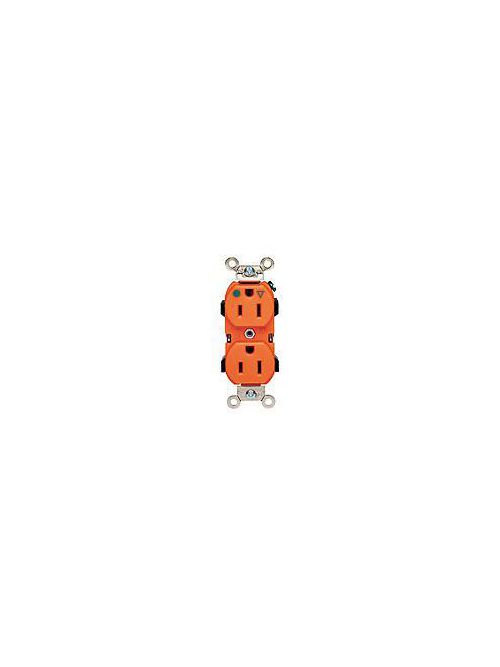

Leviton 8200-IGW 15 Amp 125 Volt NEMA 5-15R 2-Pole 3 Wire Straight Blade White Narrow Body Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$33.89/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 8200-IGW
North Coast Part # 63828

Specifications

Material Specifications

  • Ground Clips: Brass
  • Line Contacts: 0.030" Phosopher Bronze
  • Face Material: PBT Polyester Blend
  • Color: White
  • Shutter Mechanism: Acetal
  • Ground Contacts: 0030" Brass
  • Grounding Screw: #8 Hex Head, Triple-Drive Bass
  • Terminal Screws: #8 Triple-Drive Brass
  • Body Material: PBT Polyester Blend
  • Terminal Clamp: Brass
  • Mounting Screws: Triple-Drive Plated Steel
  • Clamp Nuts: 0.030" Brass
  • At Rated Voltage: 1/2 HP
  • Strap Material: Steel (Galvanized G60)

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • Certification/Listing: cULus, NOM-ANCE
  • ANSI: C-73
  • Applicable Standards: UL 498, Fed Spec W-C-569, CSA 22.2 No. 42
  • UL Fed Spec WC-596: File E13399
  • UL498HG: File E13399
  • RoHS: RoHS Compliant
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 15 A
  • Flammability: Rated V-2 per UL 94
  • Wire: 3
  • Dielectric Voltage: Withstands 3000V min
  • Temperature Rise: Max 30C temperature rise at full rated current
  • Pole: 2
  • Operating Temperature: -40°C to 60°C
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • Function: Isolated Ground
  • NEMA: 5-15R
  • Feature 4: Smooth Face
  • Color: White
  • Country Of Origin: Mexico
  • Grade: Heavy-Duty Hospital Grade
  • Device Type: Duplex Receptacle Outlet

Mechanical Specifications

  • Wire Type: Stranded or Solid
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Termination: Back or Side Wire

AC Horsepower Ratings

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 3000V min
  • Temperature Rise: Max 30C temperature rise at full rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding
  • At Rated Voltage: 1/2 HP

Environmental Specifications

  • Ground Clips: Brass
  • Flammability: Rated V-2 per UL 94
  • Face Material: PBT Polyester Blend
  • Color: White
  • Shutter Mechanism: Acetal
  • Ground Contacts: 0030" Brass
  • Operating Temperature: -40°C to 60°C
  • Terminal Screws: #8 Triple-Drive Brass
  • Grounding Screw: #8 Hex Head, Triple-Drive Bass
  • Line Contacts: 0.030" Phosopher Bronze
  • Body Material: PBT Polyester Blend
  • Mounting Screws: Triple-Drive Plated Steel
  • Clamp Nuts: 0.030" Brass
  • Strap Material: Steel (Galvanized G60)

Overview

UPC 07847705730
GTiN 00078477057308
Warranty Length 10 yr
Size 46 H x 1.55 W x 1.12 D IN
Color White
Operating Temperature -40 C
Voltage 125 Volt
Type Outlet, Isolated Ground
Material Thermoplastic
Conductor Size 14-10 AWG
Applications Hospital
Mounting Type Wallbox
Grade Hospital
Country of Origin Mexico
Wire Size 14-10 AWG
Standard ANSI C-73,CSA 22.2 No. 42,Fed Spec W-C-569,UL 498
Wire Type Stranded Building Wire
Connection Type Back and Side Wire
Horsepower 1/2 hp
Face Material Polyester
Body Material PBT Polyester Blend
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R,WD-6
Number of Phases 1 Phase
Dielectric 3000 V
Certifications CULus,NOM-ANCE
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Back and Side Wired
Amperage 15 Amp
Dielectric Strength 2000 V
Blade Dimensions 1.55 in W x 1.12 in D x 46 in H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 30 C
Device Type Duplex Receptacle Outlet
