Manufacturer Leviton
Mfg Catalog # 8200-LGY
North Coast Part # 1343127


Material Specifications

  • Ground Clips: Brass-Plated
  • Line Contacts: Phosphor Bronze
  • Face Material: Nylon
  • Grounding Leads: 6", #12 AWG THHN
  • Color: Gray
  • Strap Material: Steel
  • Bushing: Die Cast Aluminum
  • Grounding Screw: 12GA THHN Green Wire Lead 6 Inch
  • Terminal Screws: 12GA THHN Wire Leads 6 Inch
  • Body Material: Nylon
  • Terminal Leads: 6", #12 AWG THHN
  • Yoke: Zinc-Plated Steel
  • Mounting Screws: Steel

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13399
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • Warranty: 10-Year Limited
  • NEMA: 5-15R
  • Feature 4: Smooth Face
  • Color: Gray
  • Strap Material: Steel
  • Country Of Origin: Mexico
  • Grade: Heavy-Duty Hospital Grade
  • Device Type: Duplex Receptacle Outlet
  • Body Material: Nylon
  • Grounding: Self-Grounding
  • Termination: Pre-Wired Leads

Mechanical Specifications

  • Termination: Pre-Wired Leads
  • Product ID: Markings are permanently marked on device
  • Terminal ID: Black-Hot, Green-Ground, White-Neutral
  • Lead Identification: Leads identified in accordance with UL 498

AC Horsepower Ratings

  • Horsepower Rating: 1/2 HP
  • At Rated Voltage: 1/2 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C


UPC 07847728397

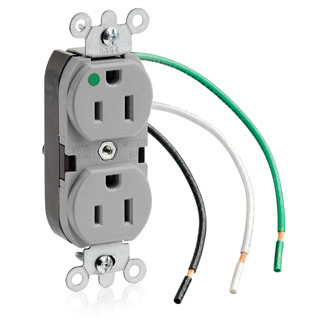

Item Long Description 15-Amp, 125-Volt, Slim Body Duplex Receptacle, Hospital Grade, Straight Blade, Grounding, Gray
GTiN 00078477283974
Warranty Length 10 yr
Size 46 H x 1.53 W x 1.11 D IN
Color Gray
Operating Temperature -40 C
Voltage 125 Volt
Type Duplex Outlet,Straight Blade
Material Thermoplastic
Applications Commercial
Mounting Type Wall Box
Grade Heavy-Duty Hospital
Country of Origin Mexico
Wire Size 14-10 AWG
Standard ANSI C-73
Connection Type Wire Lead
Horsepower 1/2 hp
Face Material Nylon
Body Material Nylon
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R,WD-6
Number of Phases 1 Phase
Dielectric 2000 V
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Wire Lead
Amperage 15 Amp
Dielectric Strength 2000 (Min.)
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Duplex Receptacle Outlet
