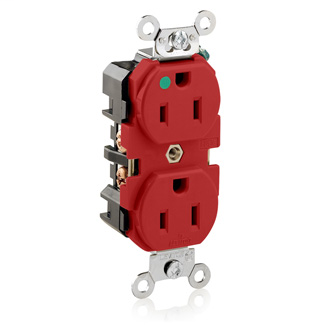

LEV 8200-R 515R HG RECEP RED NIKL P
$7.32/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 8200-R
North Coast Part # 215826

Specifications

Material Specifications

  • Ground Clips: Nickel-Plated Brass
  • Line Contacts: Nickel-Plated Brass Triple-Wipe .040 Thick
  • Face Material: Nylon
  • Terminal Screws: Nickel-Plated Brass 10-32
  • Strap Material: Nickel Plated Brass
  • Grounding Screw: Plated Brass
  • Body Material: Nylon
  • Clamp Nuts: Zinc-Plated Steel

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498HG: File E13399
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13399
  • RoHS: Compliant
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • Warranty: 10-Year Limited
  • NEMA: 5-15R
  • Feature 4: Smooth Face
  • Color: Red
  • Strap Material: Nickel Plated Brass
  • Country Of Origin: Please Contact Customer Service.
  • Grade: Extra Heavy-Duty Hospital Grade
  • Device Type: Duplex Receptacle Outlet
  • Grounding: Self-Grounding

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Termination: Back or Side Wire

AC Horsepower Ratings

  • Horsepower Rating: 1/2 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847781860
GTiN 00078477818602
Finish Matt, Nickel Plated
Warranty Length 10 yr
Size 46 H x 1.53 W x 1.11 D IN
Color Red
Operating Temperature -40 C
Voltage 125 Volt
Type 2-Outlet, 1-Unit
Material Thermoplastic
Conductor Size 14-10 AWG
Applications Commercial
Mounting Type Screw, Wall Box, Flush
Grade Hospital/Commercial
Wire Size 14-10 AWG
Standard ANSI C-73
Connection Type Back and Side Wire
Horsepower 1/2 hp
Face Material Nylon
Body Material Nylon
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA WD-6,5-15R
Number of Phases 1
Dielectric 2000 V
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Back and Side Wired
Amperage 15 Amp
Dielectric Strength 2000 V
Blade Dimensions 1.53 in W x 1.11 in D x 46 in H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Duplex Receptacle Outlet
