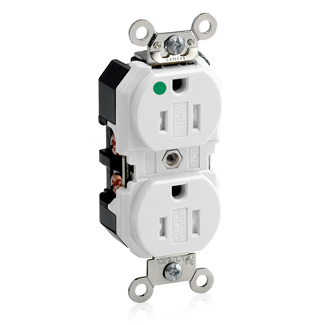

Leviton 8200-SGW 125 Volt 15 Amp 2-Pole 3-Wire NEMA 5-15R 1/2 Hp White Nylon Straight Blade Duplex Receptacle
$37.62/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 8200-SGW
North Coast Part # 72892

Specifications

Material Specifications

  • Ground Clips: Nickel-Plated Brass
  • Line Contacts: Nickel Plated Phosphor Bronze
  • Face Material: Nylon
  • Color: White
  • Shutter Mechanism: Delrin® Acetal
  • Strap Material: Nickel Plated Steel
  • Grounding Screw: Plated Steel
  • Terminal Screws: Plated Brass
  • Body Material: Nylon
  • Clamp Nuts: Zinc-Plated Steel

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498HG: File E13399
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13399
  • RoHS: Compliant
  • NEMA: WD-1 & WD-6

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • Warranty: 10-Year Limited
  • NEMA: 5-15R
  • Color: White
  • Strap Material: Nickel Plated Steel
  • Country Of Origin: Mexico
  • Grade: Extra Heavy-Duty Hospital Grade
  • Feature: Tamper-Resistant, Smooth Face
  • Device Type: Duplex Receptacle Outlet
  • Grounding: Self-Grounding

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Markings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Torque Range: 14-16 inch pounds
  • Termination: Back or Side Wire

AC Horsepower Ratings

  • Horsepower Rating: 1/2 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

Categories

Overview

UPC 07847705715
GTiN 00078477057155
Warranty Length 10 yr
Size 46 H x 1.55 W x 1.21 D IN
Color White
Operating Temperature -40 C
Voltage 125 Volt
Type Outlet
Material Thermoplastic
Conductor Size 14-10 AWG
Applications Hospital
Mounting Type Wallbox
Grade Hospital
Country of Origin Mexico
Wire Size 14-10 AWG
Standard ANSI C-73
Connection Type Back and Side Wire
Torque 14-16 lb-in
Horsepower 1/2 hp
Face Material Nylon
Body Material Nylon
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R,WD-1,WD-6
Number of Phases 1 Phase
Dielectric 2000 V
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Back and Side Wired
Amperage 15 Amp
Dielectric Strength 2000 V
Blade Dimensions 1.55 in W x 1.21 in D x 46 in H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Duplex Receptacle Outlet
