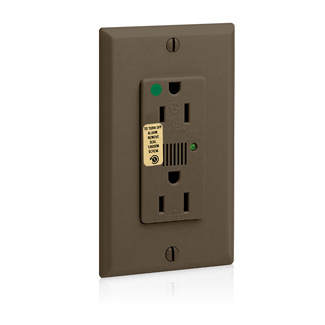

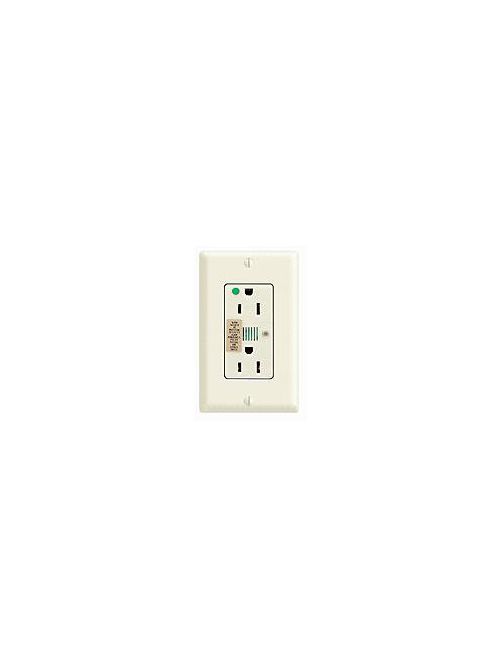

LEV 8280 BR DEC TVSS REC 15A125V HG
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$70.79/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 8280
North Coast Part # 879071

Specifications

Material Specifications

  • Ground Clips: Brass-Plated Steel
  • Line Contacts: Brass Triple-Wipe
  • Face Material: Nylon
  • Terminal Screws: Brass-Plated Steel
  • Shutter Mechanism: Delrin® Acetal
  • Grounding Screw: Brass-Plated Steel
  • Body Material: Nylon
  • Yoke: Zinc-Plated Steel
  • Clamp Nuts: Zinc-Plated Steel

Warranty

  • Warranty: 5-Year Limited

Product Features

  • Function: Surge Protective
  • NEMA: 5-15R
  • Color: Brown
  • Brand: Decora Plus
  • Country Of Origin: Mexico
  • Grade: Heavy-Duty Hospital Grade
  • Device Type: Duplex Receptacle Outlet
  • Body Material: Nylon

Standards and Certifications

  • ANSI: C-73
  • UL498HG: File E13399
  • Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
  • NEMA: WD-6
  • NOM: 057

Performance Data

  • Noise Rejection: -30dB at 500kHz-30MHz
  • Nominal Discharge Current Rating: 3kA
  • VPR: L-N: 600V, L-G: 700V, N-G: 600V
  • Diagnostics: Indicator Light & Audible Alarm
  • Short Circuit Current Rating: 5kA
  • Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA)
  • Joules Rating: 720
  • MCOV: 150V rms

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Torque Range: 14-16 inch pounds
  • Termination: Back or Side Wire

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 60°C

videos

Categories

Overview

UPC 07847700903
Item Long Description Levitons Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Levitons outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
GTiN 00078477009031
Warranty Length 5 yr
Size 3.81 H x 1.7 W x 1.47 D IN
Color Brown
Operating Temperature -40 C
Voltage 125 Volt
Type Type 3 SPD
Material Polycarbonate
Applications Hospitals
Mounting Type Box
Grade Heavy-Duty Hospital
Country of Origin Mexico
Standard ANSI C-73
Connection Type Back Wired,Side Wired
Torque 14-16 lb-in
Face Material Nylon
Body Material Nylon
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R,WD-6
Dielectric 2000 V
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
TC Connection Back Wired;Side Wired
Amperage 15 Amp
Short Circuit Current 5 kA
Environmental Conditions Flammability (Rated V-2 per UL94)
Number of Poles 2 Pole
Temperature Rise 200 %
Device Type Duplex Receptacle Outlet
Indicator Alarm,Indicator Light
Sub Brand Decora Plus
