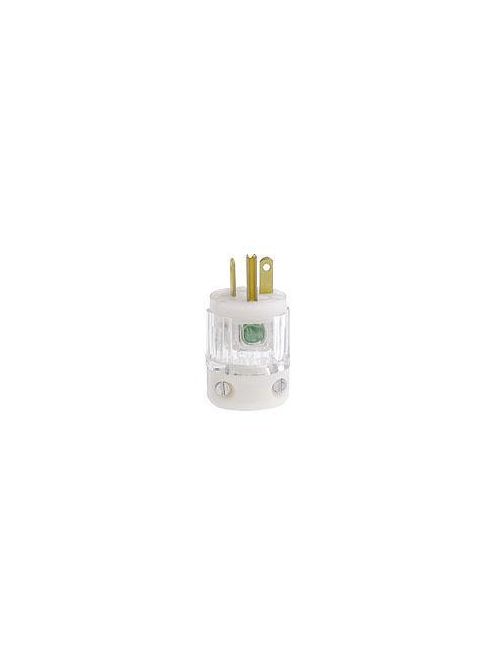

LEV 8315-PLC IND PILOT LGHT PLUG
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$32.54/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 8315-PLC
North Coast Part # 70048

Specifications

Material Specifications

  • Wire Module: Nylon
  • Color: Transparent
  • Clamp Insert: Nylon
  • Blades/Contacts: Solid Brass
  • Back Cover: Thermoplastic
  • Terminal Screws: Brass
  • Body Material: Super Tough Nylon
  • Cord-Clamp: Nylon
  • Assembly Screws: Steel, Zinc Plated

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • ANSI: C-73
  • UL 498: File E13399
  • UL Fed Spec WC-596: File E13393
  • NEMA: WD-6

Product Features

  • NEMA: 5-20P
  • Color: Transparent
  • Brand: Black and White
  • Country Of Origin: United States
  • Grade: Hospital
  • Feature: Power Indication
  • Device Type: Straight Blade Plug

Mechanical Specifications

  • Terminal ID: Black-Hot, Green-Ground, White-Neutral
  • Cord Range: .245 - .700
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: 18-10 AWG

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Voltage: 125 VAC
  • Grounding: Grounding

Environmental Specifications

  • Environment: Dry
  • Operating Temperature: -40°C to 60°C

Categories

Overview

UPC 07847797872
GTiN 00078477978726
Warranty Length 10 yr
Size 1.53 Dia x 1.98 H IN
Color Transparent
Operating Temperature -40 C
Voltage 125 Volt
Type Straight Blade Plug
Material Super Tough Nylon
Applications Hospitals
Mounting Type Cable
Grade Hospital
Country of Origin USA
Wire Size 18-10 AWG
Standard ANSI C-73
Blade Type Solid Brass
Body Material Super Tough Nylon
Screw Type Steel,Zinc-Plated
Family Brand Name Leviton
Wire Count 3
NEMA 5-20P,WD-6
Dielectric 2000 V
Environment Dry
Grounding Grounding
Contact Material Solid Brass
Amperage 20 Amp
Environmental Conditions Operating Temperature Range (-40 to 60) C
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Straight Blade Plug
Sub Brand Black & White
