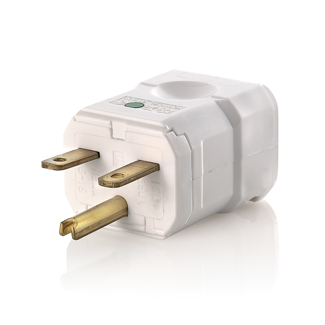

LEV 8656-V WH PYTHON PLUG HG 2PO 3W
$16.58/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 8656-V
North Coast Part # 18628

Specifications

Material Specifications

  • Wire Module: Nylon
  • Color: White
  • Clamp Insert: Nylon
  • Blades/Contacts: Solid Brass
  • Back Cover: Thermoplastic
  • Terminal Screws: Brass
  • Body Material: Super Tough Nylon
  • Cord-Clamp: Nylon
  • Assembly Screws: Steel, Zinc Plated

Standards and Certifications

  • Warranty: 2-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • ANSI: C-73
  • UL 498: File E13399
  • UL Fed Spec WC-596: File E13393
  • NEMA: WD-6

Product Features

  • NEMA: 6-15P
  • Color: White
  • Brand: Python
  • Country Of Origin: Mexico
  • Grade: Hospital
  • Device Type: Straight Blade Plug

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, White-Neutral
  • Cord Range: .245 - .700
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: 18-10 AWG

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Voltage: 250 VAC
  • Grounding: Grounding

Environmental Specifications

  • Environment: Dry
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847705522
GTiN 00078477055229
Warranty Length 2 yr
Size 1.81 H x 1.41 W x 1.22 D IN
Color White
Operating Temperature -40 C
Voltage 250 Volt
Type Hospital Grade
Material Super Tough Nylon
Applications For Hospital
Mounting Type Cable
Grade Hospital
Country of Origin Mexico
Wire Size 18-10 AWG
Standard ANSI C-73
Blade Type Solid Brass
Body Material Super Tough Nylon
Screw Type Steel,Zinc-Plated
Family Brand Name Leviton
Wire Count 3
NEMA 6-15P,WD-6
Dielectric 2000 V
Environment Dry
Grounding Grounding
Contact Material Solid Brass
Amperage 15 Amp
Environmental Conditions -40 to 60 C
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Straight Blade Plug
Sub Brand Python
Conductor Size 18-10 AWG
Blade Dimensions 1.41 in W x 1.22 in D x 1.81 in H
