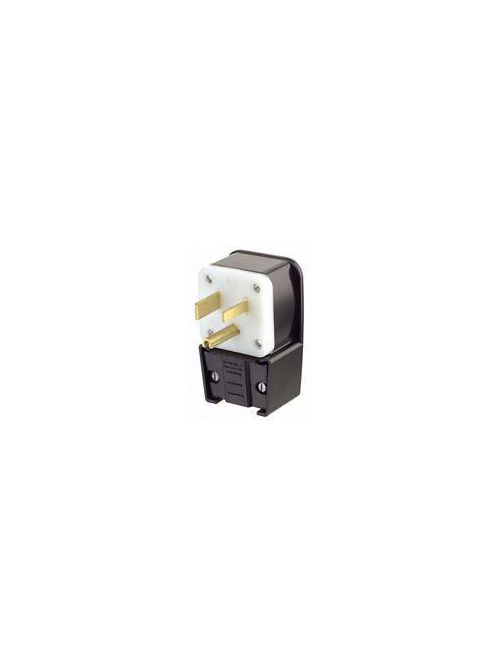

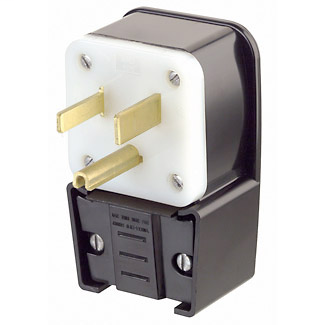

LEV 9550-P STR BL PLUG
Product image thumbnail 0
Product image thumbnail 1
$90.64/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 9550-P
North Coast Part # 550823

Specifications

Material Specifications

  • Color: Black
  • Blades/Contacts: Solid Brass
  • Body Material: Super Tough Nylon
  • Assembly Screws: Steel, Zinc Plated

Standards and Certifications

  • Warranty: 2-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498: File E13399
  • ANSI: C-73
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 50 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Grounding

Product Features

  • Warranty: 2-Year Limited
  • NEMA: 5-50P
  • Color: Black
  • Country Of Origin: Mexico
  • Feature: Angled
  • Device Type: Power Device

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Cord Range: .625 - 1.375
  • Product ID: Ratings are permanently marked on device
  • Wire Gauge: 10-4 AWG
  • Terminal Accom.: Up to 4 AWG

AC Horsepower Ratings

  • At Rated Voltage: 2 HP

Environmental Specifications

  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847780988
GTiN 00078477809884
Warranty Length 2 yr
Size 4.37 H x 2.76 W x 1.89 D IN
Color Black
Operating Temperature -40 C
Voltage 125 Volt
Type Power Plug
Material Super Tough Nylon
Conductor Size 10-4 AWG
Applications Industrial
Mounting Type Cable
Country of Origin Mexico
Wire Size 4 AWG
Standard ANSI C-73
Blade Type Solid Brass
Horsepower 2 hp
Body Material Super Tough Nylon
Screw Type Steel,Zinc-Plated
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-50P,WD-6
Dielectric 2000 V
Grounding Grounding
Amperage 50 Amp
Blade Dimensions 2.76 in W x 1.89 in D x 4.37 in H
Cord Size 5/8 - 1-3/8 in
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 150 %
Device Type Power Device
