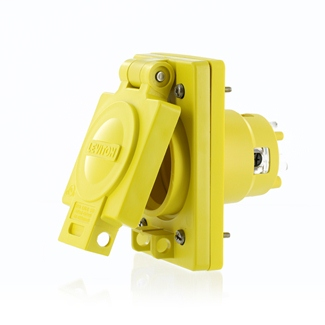

LEV 97W75-S WG OUTLET WITH COVER
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$176.42/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 97W75-S
North Coast Part # 881109

Specifications

Material Specifications

  • Cover/Lid: Valox PBT
  • Torsion Spring Mechanism (Flip Lids): Stainless Steel
  • Terminal Screws: Electroless Nickel-coated Brass
  • Blades/Contacts, Terminal Clamps: Electroless Nickel-coated Brass
  • Mounting & Assembly Screws: Stainless steel, non-magnetic
  • Cover Gasket: Santoprene TPV
  • Wiring Module Mounting Cup: Valox PBT
  • Wiring Module: Nylon

Standards and Certifications

  • Warranty: Lifetime Limited
  • NOM: 057
  • NEMA: WD-6
  • UL: 498
  • CSA: C22.2 No. 42
  • ANSI: C-73

Product Features

  • Color: Yellow
  • Device Type: Locking Outlet
  • Brand: Wetguard
  • Country Of Origin: United States
  • NEMA: L15-20R

Mechanical Specifications

  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: #16 AWG to #10 AWG

Electrical Specifications

  • Amperage: 20 A
  • Wire: 4
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 3
  • Current Limiting: Full Rated Current
  • Voltage: 250 VAC
  • Grounding: Grounding
  • Phase: 3-Phase

Environmental Specifications

  • Environment: Wet
  • Flammability: Rated V-2 per UL 94 (wiring module)
  • Operating Temperature: -40°C to 60°C
  • Enclosure Rating: NEMA 4, 4X, 12 IEC IP66

videos

Overview

UPC 07847751963
Item Long Description 20 Amp, 250 Volt 3 Phase, NEMA L15-20, 3P, 4W, Grounding, Wetguard, Locking Single Outlet Industrial Grade, Yellow
GTiN 00078477519639
Warranty Length Lifetime
Color Yellow
Operating Temperature -40 C
Type Single Outlet
Applications Industrial
Country of Origin USA
Standard ANSI C-73
Family Brand Name LEVITON
Wire Count 4
NEMA L15-20R,WD-6
Dielectric 2000 V
Environment Wet
Flamability Class Rated V-2 Per UL 94
Grounding Grounding
Amperage 20 Amp
IP Rating IP66
CSA C22.2 No. 42
Number of Poles 3 Pole
Temperature Rise 200 %
Device Type Locking Outlet
Sub Brand Wetguard
