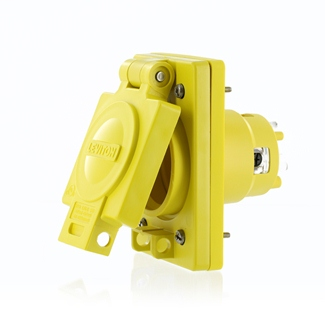

LEV 97W83-S WG OUTLET WITH COVER

Specifications

Material Specifications

• Cover/Lid: Valox PBT
• Torsion Spring Mechanism (Flip Lids): Stainless Steel
• Terminal Screws: Electroless Nickel-coated Brass
• Blades/Contacts, Terminal Clamps: Electroless Nickel-coated Brass
• Mounting & Assembly Screws: Stainless steel, non-magnetic
• Cover Gasket: Santoprene TPV
• Wiring Module Mounting Cup: Valox PBT
• Wiring Module: Nylon

Standards and Certifications

• Warranty: Lifetime Limited
• NOM: 057
• NEMA: WD-6
• UL: 498
• CSA: C22.2 No. 42
• ANSI: C-73

Product Features

• Color: Yellow
• Device Type: Locking Outlet
• Brand: Wetguard
• Country Of Origin: United States
• NEMA: L23-20R

Mechanical Specifications

• Product ID: Ratings and NEMA I.D. permanently marked on device
• Terminal Accom.: #16 AWG to #10 AWG

Electrical Specifications

• Amperage: 20 A
• Wire: 5
• Dielectric Voltage: Withstands 2000V per UL498
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Pole: 4
• Current Limiting: Full Rated Current
• Voltage: 347/600 VAC
• Grounding: Grounding
• Phase: 3-Phase WYE

Environmental Specifications

• Environment: Wet
• Flammability: Rated V-2 per UL 94 (wiring module)
• Operating Temperature: -40°C to 60°C
• Enclosure Rating: NEMA 4, 4X, 12 IEC IP66
