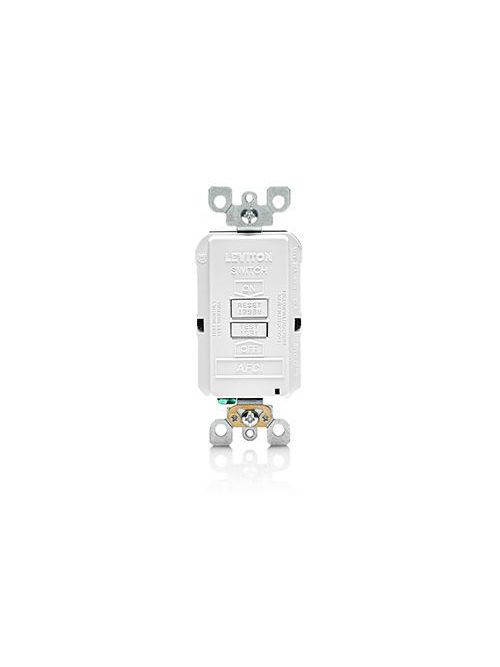

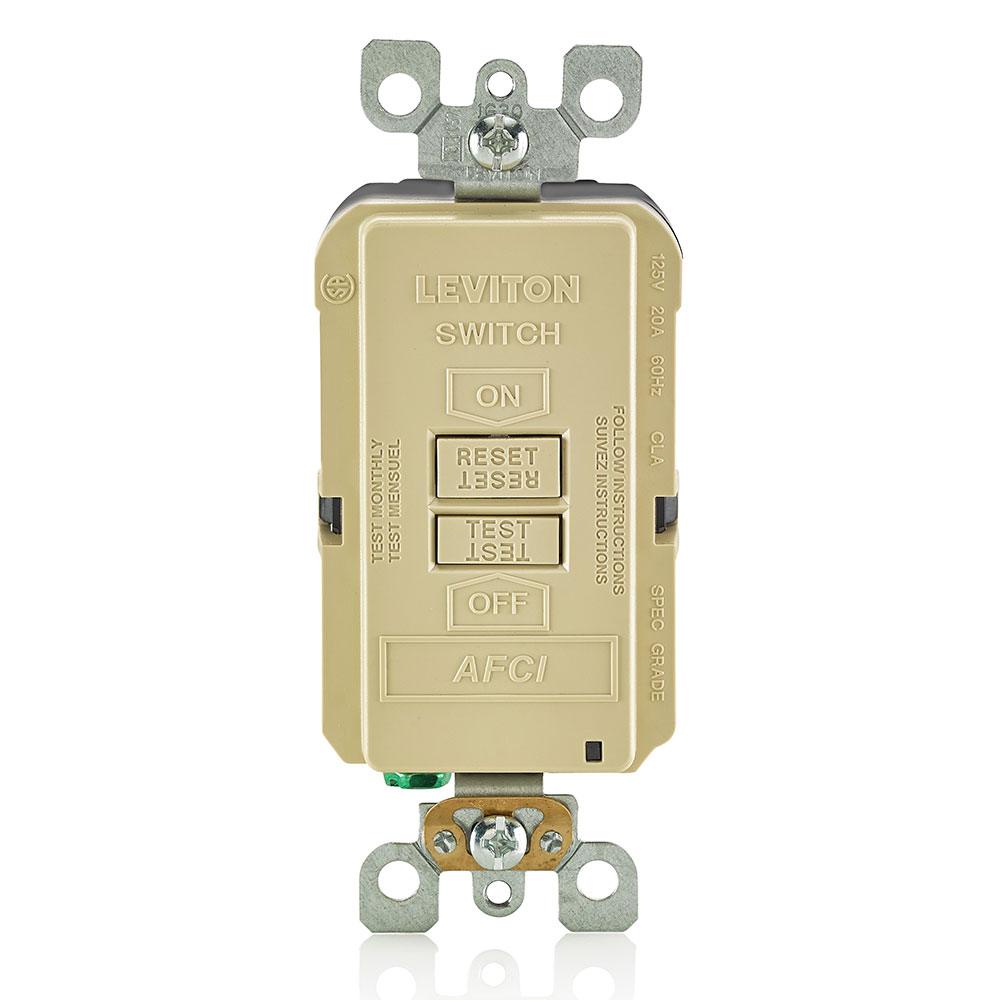

LEV AFRBF-I BLANK FACE ACFI
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$47.01/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # AFRBF-I
North Coast Part # 1018323

Features

  • Use of TEST and RESET buttons is similar to traditional GFCI receptacles of which consumers have become familiar with. This translates into greater acceptance of the technology and a more user-friendly platform
  • Automatically tests the AFCI every time the RESET button is depressed; the AFCI will not reset if the AFCI circuit is not functioning properly
  • By blocking reset of the AFCI if protection has been compromised, the SmartlockPro OBC AFCI reduces the possibility of end-users incorrectly assuming that a reset AFCI is providing protection when its functionality has been compromised
  • A line-load reversal diagnostic feature is provided which prevents the AFCI from being reset and stops power from being fed to the AFCI receptacle face or through to downstream devices; a green LED indicator on the AFCI’s face also illuminates to alert the installer to a line-load wiring reversal when the device is in the tripped state
  • Device design reduces nuisance tripping
  • Impact-resistant thermoplastic cover and body
  • Superior resistance to electrical surges and over-voltages
  • Terminals allow for easy wiring options – back and side wire capable
  • Compatible with all Decora® devices and wallplates; available in select colors
  • Meets or exceeds UL requirements for tripping time on both series and parallel arcs

Specifications

Material Specifications

  • Product ID: Ratings are permenantly marked on device
  • Face Material: Thermoplastic
  • Terminal Accom.: 14-10 AWG
  • Terminal Screws: Plated Steel
  • Notes: Wallplate Sold Separately
  • Strap Material: Galvanized Steel
  • Grounding Screw: Plated Steel
  • Body Material: Polycarbonate
  • Yoke: Zinc-Plated Steel
  • Clamps: Brass
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral

Standards and Certifications

  • NOM: 057
  • UL1699.A: File E342815
  • CSA C22.2 No. 42: Yes
  • UL498: Yes
  • Standards and Certifications: UL/CSA
  • ANSI: C-73
  • NEMA: WD-6

Electrical Specifications

  • Operating Temperature: -35C to +66C
  • Dielectric Voltage: Withstands 1250VAC per UL 1699A

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Face Material: Thermoplastic
  • Terminal Screws: Plated Steel
  • Temperature Rise: Maximum 30 degrees C rise
  • Notes: Wallplate Sold Separately
  • Strap Material: Galvanized Steel
  • Grounding Screw: Plated Steel
  • Body Material: Polycarbonate
  • Yoke: Zinc-Plated Steel
  • Clamps: Brass

Product Features

  • Amperage: 20 A
  • Warranty: 2-Year Limited
  • Wire: 3
  • Color: Ivory
  • Country Of Origin: China
  • Pole: 2
  • Voltage: 125 VAC
  • Grounding: Self Grounding
  • Termination: Back & Side
  • At Rated Voltage: 1 HP
  • Type: Blank Face

Mechanical Specifications

  • Amperage: 20 A
  • Warranty: 2-Year Limited
  • Product ID: Ratings are permenantly marked on device
  • Wire: 3
  • Terminal Accom.: 14-10 AWG
  • Color: Ivory
  • Pole: 2
  • Voltage: 125 VAC
  • Grounding: Self Grounding
  • Termination: Back & Side
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral

AC Horsepower Ratings

  • At Rated Voltage: 1 HP
  • Dielectric Voltage: Withstands 1250VAC per UL 1699A

Environmental Requirements

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -35C to +66C
  • Temperature Rise: Maximum 30 degrees C rise

videos

Overview

UPC 07847762247
GTiN 00078477622476
Warranty Length 2 yr
Color Ivory
Operating Temperature -35 C
Voltage 125 Volt
Type Blank Face
Mounting Type Wall
Country of Origin China
Standard ANSI C-73,CSA,UL
Horsepower 1 hp
Face Material Thermoplastic
Body Material Polycarbonate
Family Brand Name Leviton
Wire Count 3
NEMA WD-6
Rated Insulation Voltage 1250 V
Flamability Class Rated V-2 Per UL 94
Grounding Self
Amperage 20 Amp
Number of Poles 2 Pole
Temperature Rise 30 C
Material Polycarbonate
Conductor Size 14-10 AWG
Grade Commercial, Specification
Wire Type Self Grounding
Connection Type Back and Side Wired
Temperature Rating -35 to 66 C
Dielectric Strength 1250 VAC
Environmental Conditions UL 94-V2 Flammability
Number of Wires 3
