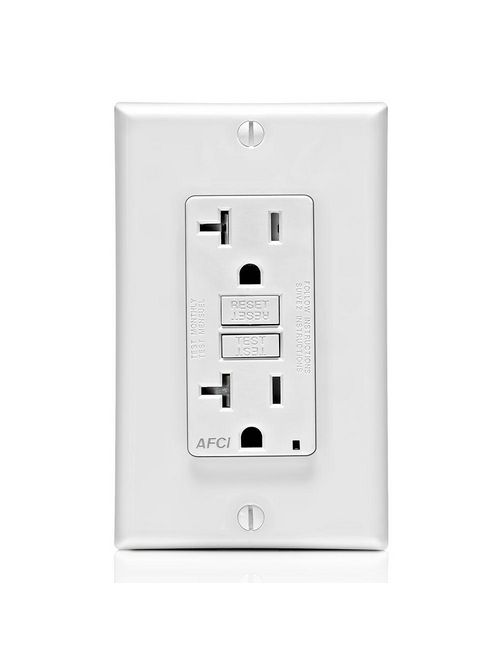

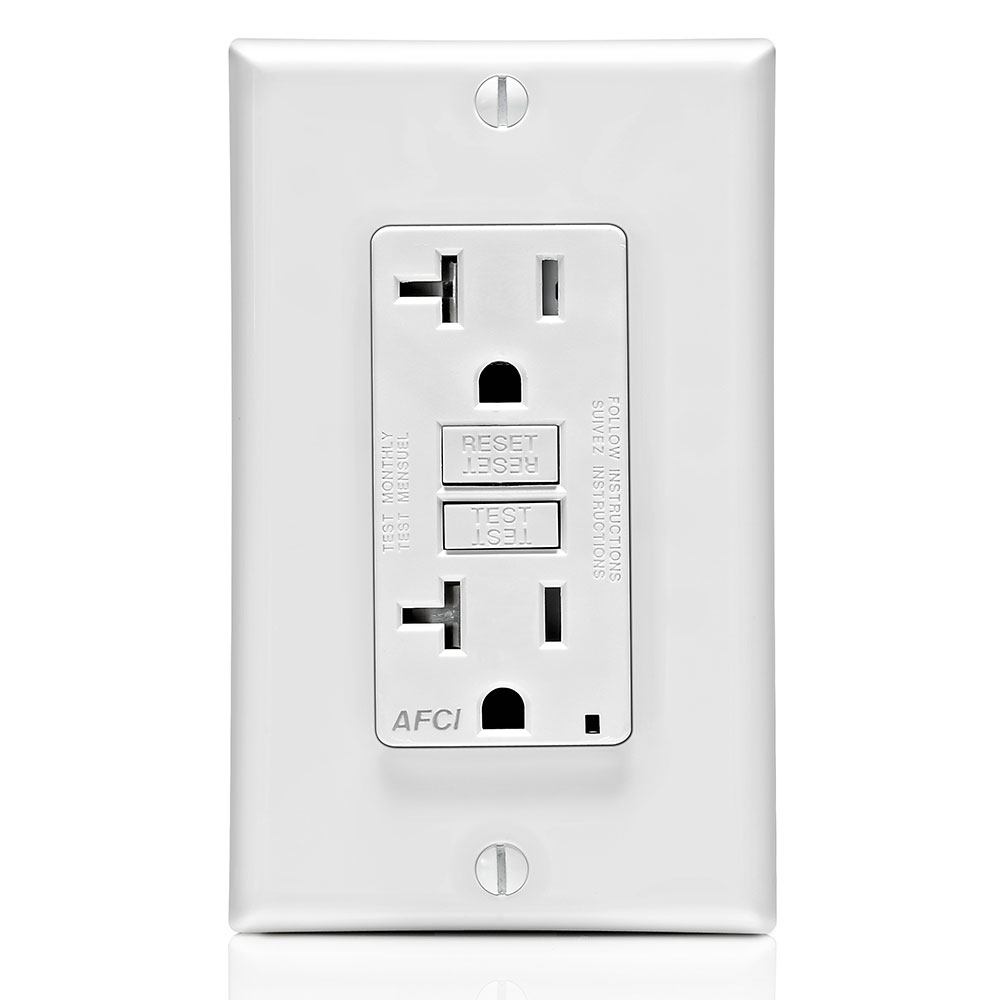

LEV AFTR2-W WH AFCI 20A125V

Features

• Use of TEST and RESET buttons is similar to traditional GFCI receptacles of which consumers have become familiar with. This translates into greater acceptance of the technology and a more user-friendly platform
• Automatically tests the AFCI every time the RESET button is depressed; the AFCI will not reset if the AFCI circuit is not functioning properly
• By blocking reset of the AFCI if protection has been compromised, the SmartlockPro OBC AFCI reduces the possibility of end-users incorrectly assuming that a reset AFCI is providing protection when its functionality has been compromised
• A line-load reversal diagnostic feature is provided which prevents the AFCI from being reset and stops power from being fed to the AFCI receptacle face or through to downstream devices; a green LED indicator on the AFCI’s face also illuminates to alert the installer to a line-load wiring reversal when the device is in the tripped state
• TR symbol indicates the device’s compliance with the latest NEC® requirements for tamper-resistant receptacles in residences and childcare facilities
• Device design reduces nuisance tripping
• Impact-resistant thermoplastic cover and body
• Superior resistance to electrical surges and over-voltages
• Terminals allow for easy wiring options – back and side wire capable
• Compatible with all Decora® devices and wallplates; available in select colors
• Meets or exceeds UL requirements for tripping time on both series and parallel arcs

Specifications

Material Specifications

• Line Contacts: Brass Triple-Wipe
• Product ID: Ratings are permanently marked on device
• Face Material: Thermoplastic
• Terminal Accom.: 14-10 AWG
• Terminal Screws: Plated Steel
• Notes: w/ Wallplate
• Grounding Screw: Plated Steel
• Body Material: Polycarbonate
• Yoke: Zinc-Plated Steel
• Clamps: Brass
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral

Standards and Certifications

• NOM: 057
• CSA Technical Information Letter No. M-02A: Yes
• UL1699.A: File E342815
• CSA C22.2 No. 42: Yes
• ANSI: C-73
• UL 498: Yes
• UL Fed Spec WC-596: Yes
• NEMA: WD-6

Electrical Specifications

• Flammability: Rated V-2 per UL 94
• Operating Temperature: -35C to +66C
• Dielectric Voltage: Withstands 1250VAC per UL 1699A
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current

Product Features

• Amperage: 20 A
• Warranty: 2-Year Limited
• Wire: 3
• NEMA: 5-20R
• Color: White
• Series: AFTR2
• Standards and Certifications: UL/CSA
• Strap Material: Galvanized Steel
• Country Of Origin: China
• Feature: Tamper-Resistant
• Pole: 2
• Voltage: 125 VAC
• Grounding: Self-Grounding
• Termination: Back & Side
• At Rated Voltage: 1 HP
• Type: Duplex Receptacle

Mechanical Specifications

• Amperage: 20 A
• Warranty: 2-Year Limited
• Product ID: Ratings are permanently marked on device
• Wire: 3
• Terminal Accom.: 14-10 AWG
• NEMA: 5-20R
• Color: White
• Series: AFTR2
• Standards and Certifications: UL/CSA
• Strap Material: Galvanized Steel
• Feature: Tamper-Resistant
• Pole: 2
• Voltage: 125 VAC
• Grounding: Self-Grounding
• Termination: Back & Side
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral

AC Horsepower Ratings

• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• At Rated Voltage: 1 HP
• Dielectric Voltage: Withstands 1250VAC per UL 1699A

Environmental Specifications

• Line Contacts: Brass Triple-Wipe
• Flammability: Rated V-2 per UL 94
• Face Material: Thermoplastic
• Terminal Screws: Plated Steel
• Notes: w/ Wallplate
• Operating Temperature: -35C to +66C
• Grounding Screw: Plated Steel
• Body Material: Polycarbonate
• Yoke: Zinc-Plated Steel
• Clamps: Brass
