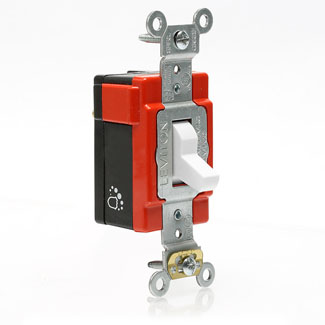

LEV AM120-W WH ANTIMICROBIAL LEVLK
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$42.86/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # AM120-W
North Coast Part # 1277539

Specifications

Material Specifications

  • Ground Clips: Brass
  • Contacts: Silver-Alloy
  • Terminal Screws: Brass 8-32
  • Cover Material: Thermoplastic
  • Strap Material: Galvanized Steel
  • Base Material: Thermoplastic
  • Grounding Screw: Steel 8-32
  • Toggle: Antmicrobial Urea

Warranty

  • Warranty: 10-Year Limited

Standards and Certifications

  • NOM: NOM-ANCE
  • ISO 22196: Measurement of Antibacterial Activity on Plastics and Other Non-Porous Surfaces
  • UL Fed Spec WS896E: File #E7458
  • UL Standard: UL 20
  • JIS Z 2801:2000: Test for Antimicrobial Activity and Efficacy
  • CSA C22.2 No. 111: File #152105
  • NEMA: WD-1 & WD-6

Product Features

  • Function: Single-Pole
  • Color: White
  • Brand: Lev-Lok
  • Country Of Origin: Mexico
  • Feature: Antimicrobial
  • Device Type: Toggle Switch
  • Grade: Extra Heavy-Duty Industrial Specification Grade

Mechanical Specifications

  • Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
  • Termination: Back or Side Wire

Electrical Specifications

  • Amperage: 20 A
  • Dielectric Voltage: Withstands 1500V for 1 minute
  • Temperature Rise: Maximum 30 degrees C rise
  • Endurance: 50,000 cycles minimum
  • Voltage: 120/277 VAC
  • Grounding: Self-Grounding
  • Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
  • AC Horsepower Ratings: 1HP-120V 2HP-240V, 16A Max

Environmental Specifications

  • Flammability: Rated HB or better UL94
  • Operating Temperature: -40°C to 65°C
  • Storage Temperature: -40ºC to 65ºC

videos

Overview

UPC 07847770047
GTiN 00078477700471
Warranty Length 10 yr
Color White
Operating Temperature -40 C
Voltage 120 Volt
Type Antimicrobial Switch
Grade Extra Heavy-Duty Industrial Specification
Country of Origin Mexico
Horsepower 1 hp
Base Material Thermoplastic
Toggle Material Antmicrobial Urea
Family Brand Name Leviton
NEMA WD-1,WD-6
Dielectric 1500 V
Flamability Class Rated HB Or Better UL94
Grounding Self-Grounding
Contact Material Silver-Alloy
Amperage 20 Amp
Number of Poles 1 Pole
Temperature Rise 30 C
Device Type Toggle Switch
Cover Material Thermoplastic
Storage Temperature -40 To 65 C
Sub Brand Lev-Lok
