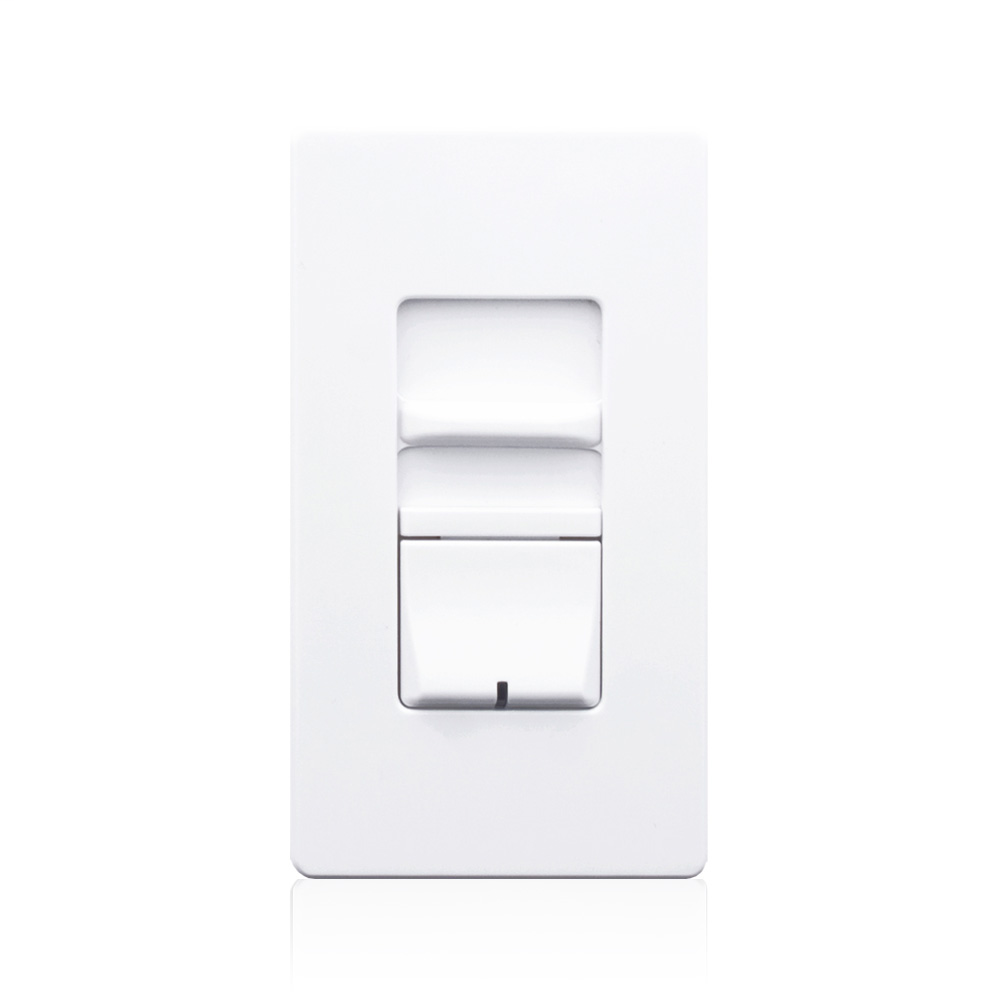

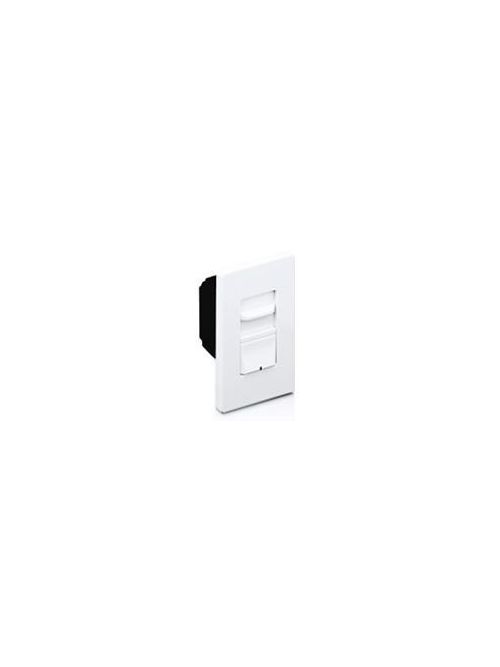

LEV AWSMT-7DW RENOIR2 FL10V5A 120-2
$87.62/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # AWSMT-7DW
North Coast Part # 678009

Features

  • Universal voltage—120-277V (excludes non-neutral models)
  • Multi-location dimming—up to 5-way dimming
  • Remote dimmers and switches
  • Connect up to 5 devices, max 250’ on one traveler wire
  • Remote control all connected master dimmers
  • Masters always operate independently
  • Locator indicator—illuminates when dimmer is off for easy location in a dark room
  • Non-neutral models—for retrofit applications
  • Configurable cut-off level—allows user configuration of cut-off point and automatically recalibrates to allow maximum control from cutoff point to full output
  • Smooth-action, linear captive slide control— easy, precise adjustment of lighting levels - Easy-touch preset switch turns lights ON at last selected brightness level
  • Clean and stylish appearance
  • Fits standard commercial 2-1/2” deep wallboxes
  • Decora® wallplates coordinate with Leviton’s extensive line of Decora devices
  • Fins are easily removed for multi-gang applications
  • No visible metal heat sinks, fins or mounting hardware
  • Solid state triac dimming—saves energy when dimming, extends lamp life and reduces maintenance costs
  • Flicker-free, smooth, and continuous dimming—reduces light fluctuations from line voltage variation and maintains the power delivered to the lamp
  • Power failure memory—light is restored to the same levels set prior to the power failure or power interruption
  • Surge protection—tested to withstand surges of 6,000V, 200A (ANSI/IEEE Std. C62.41-1980)
  • Electrostatic discharge protection—protects dimmer against static discharge up to 16,000V
  • Advanced technology engineered heat sinks—transfers heat away from essential electrical components for extended product life
  • Square law dimming—slider position indicates the perceived light level
  • RFI filtering—reduces interference with radio, audio and video equipment
  • Accessible air gap feature—completely disconnects power from the load when lights are off for safety when changing lamps (available on select models; consult factory for additional details)

Specifications

Electrical Specifications

  • Wattage/VA: 1920/3680/4432
  • Voltage: 120/230/277 VAC

Product Features

  • Product Category: Wallbox
  • LED Compatible: Yes
  • Color: White
  • Country Of Origin: China
  • Control Style: Preset Slide
  • Load Type: Fluorescent 0-10V
  • Neutral: Required
  • Product Line: Renoir II
  • Product Type: Preset Slide Dimmer

Overview

UPC 07847745976
GTiN 00078477459768
Size 5.157 H x 2.891 W x 2.133 D IN
Color White
Operating Temperature 0 - 40 C
Voltage 120 Volt
Type Multi-Location, Wallbox, Preset Slide, Variable Position Knob
Material Plastic
Product Type Preset Slide Dimmer
Applications For 0 - 10 V Fluorescent, Architectural Dimming Control
Country of Origin China
Standard UL\cUL Or ETL\cETL Listed To UL\CSA Standards (E31373 For Dimmers, E123566 For Fans), ANSI\IEEE C62.41.2, ESD Protection To IEC61000, FCC Part 15 Class B
Frequency 60 Hz
Connection Type Traveler Wire
Wattage 4432 Watt
Family Brand Name Leviton
Power Rating 1920/3680/4432 W
Control Type Preset Slide
TC Connection Traveler Wire
Blade Dimensions 2.891 in W x 2.133 in D x 5.157 in H
Environmental Conditions 0 - 90% RH, -10 to 85 C
Load Type Fluorescent 0-10V
Sub Brand Renoir II
