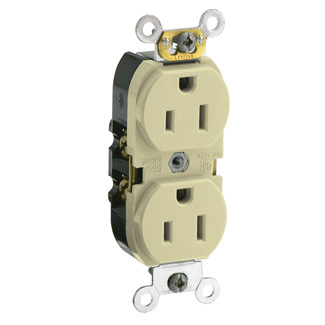

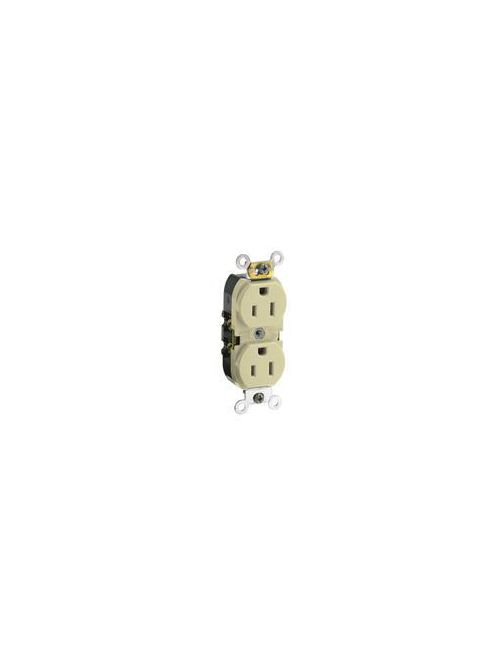

Leviton CR015-I 125 Volt 15 Amp 2-Pole 3-Wire NEMA 5-15R 1/2 Hp Ivory Nylon Slim Straight Blade Duplex Receptacle
$2.91/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # CR015-I
North Coast Part # 664562

Specifications

Material Specifications

  • Ground Clips: Brass-Plated
  • Line Contacts: Brass Double Wipe .031 Thick
  • Face Material: Nylon
  • Color: Ivory
  • Strap Material: Zinc-Plated Steel
  • Grounding Screw: Steel 8-32
  • Terminal Screws: Steel 8-32
  • Body Material: Nylon

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498: File E13399
  • ANSI: C-73
  • NEMA: WD-2 WD-6

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • NEMA: 5-15R
  • Feature 4: Smooth Face
  • Color: Ivory
  • Country Of Origin: Please Contact Customer Service.
  • Grade: Commercial Specification Grade
  • Device Type: Duplex Receptacle Outlet
  • Grounding: Self-Grounding

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Termination: Side Wire

AC Horsepower Ratings

  • At Rated Voltage: 1/2 HP

Environmental Specifications

  • Operating Temperature: -40°C to 60°C

Categories

Overview

UPC 07847781522
GTiN 00078477815229
Warranty Length 10 yr
Size 46 H x 1.53 W x 1.245 D IN
Color Ivory
Operating Temperature 60 C
Voltage 125 Volt
Type Straight Blade,Duplex Outlet
Material Nylon
Applications Commercial
Mounting Type Wall Box
Grade Commercial Specification
Wire Size 14-10 AWG
Standard ANSI C-73
Connection Type Side Wired
Horsepower 1/2 hp
Face Material Nylon
Body Material Nylon
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 3
NEMA WD-2,5-15R,WD-6
Number of Phases 1
Dielectric 2000 V
Grounding Self-Grounding
TC Connection Side Wired
Amperage 15 Amp
Dielectric Strength 2000 (Min.)
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 150 %
Device Type Duplex Receptacle Outlet
