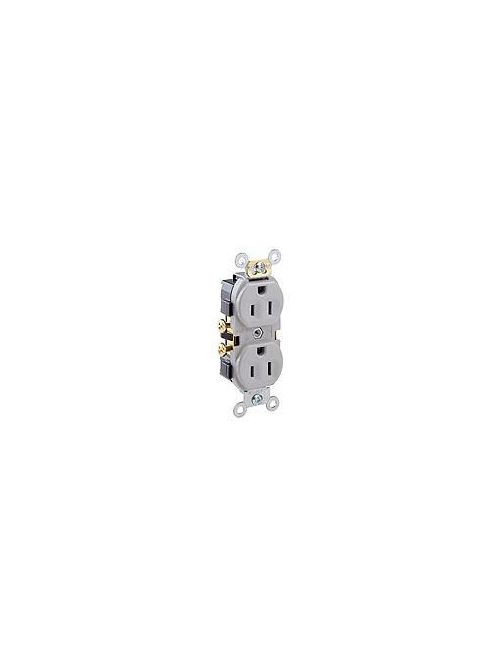

Leviton CR15-GY 125 Volt 15 Amp 2-Pole 3-Wire NEMA 5-15R 1/2 Hp Gray Thermoplastic Nylon Straight Blade Duplex Receptacle
$2.52/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # CR15-GY
North Coast Part # 219000

Specifications

Material Specifications

  • Ground Clips: Brass-Plated
  • Line Contacts: Brass Double Wipe .031 Thick
  • Face Material: Nylon
  • Color: Gray
  • Strap Material: Zinc-Plated Steel
  • Grounding Screw: Steel 8-32
  • Terminal Screws: Steel 8-32
  • Body Material: Nylon

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498: File E13399
  • ANSI: C-73
  • NEMA: WD-1 & WD-6

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • Face Material: Nylon
  • NEMA: 5-15R
  • Feature 4: Indented Face
  • Color: Gray
  • Country Of Origin: United States
  • Grade: Commercial Specification Grade
  • Device Type: Duplex Receptacle Outlet
  • Body Material: Nylon
  • Grounding: Self-Grounding

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Termination: Side Wire

AC Horsepower Ratings

  • At Rated Voltage: 1/2 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847781519
GTiN 00078477815199
Finish Matte
Warranty Length 10 yr
Size 46 H x 1.56 W x 1.245 D IN
Color Gray
Operating Temperature -40 C
Voltage 125 Volt
Type Outlet
Material Thermoplastic
Conductor Size 14-10 AWG
Applications Commercial
Mounting Type Wallbox, Flush
Grade Commercial
Country of Origin United States
Wire Size 14-10 AWG
Standard ANSI C-73
Connection Type Side Wire
Horsepower 1/2 hp
Face Material Nylon
Body Material Nylon
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R,WD-1,WD-6
Number of Phases 1
Dielectric 2000 V
Flamability Class Rated V-2 Per UL94
Grounding Self-Grounding
TC Connection Side Wired
Amperage 15 Amp
Dielectric Strength 2000 V
Blade Dimensions 39.5 mm W x 27.6 mm D x 103.2 mm H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 150 %
Device Type Duplex Receptacle Outlet
