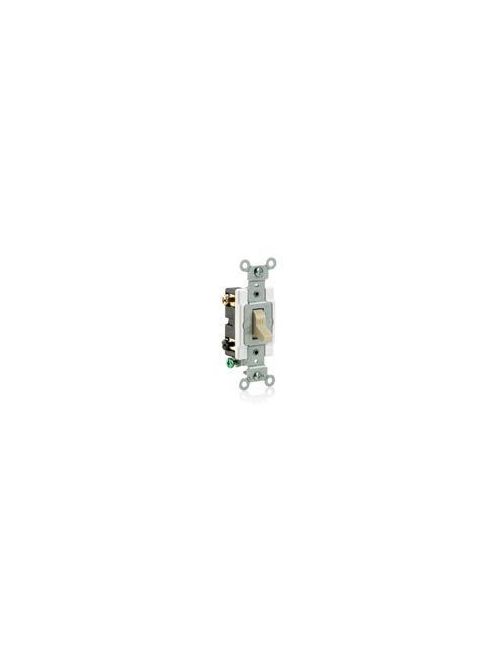

Product image thumbnail 0
Product image thumbnail 1
Usually ships within 6 to 8 Days
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # CS220-2T
North Coast Part # 367937


Material Specifications

  • Color: Light Almond
  • Termination: Side Wire
  • Body Material: Thermoplastic
  • Strap Material: Steel
  • Actuator Material: Thermoplastic

Standards and Certifications

  • Warranty: 10-Year Limited
  • Standards and Certifications: UL/CSA
  • UL Fed Spec WS896E: File #E7458

Electrical Specifications

  • Amperage: 20 A
  • Dielectric Voltage: Withstands 1500V for 1 minute
  • Temperature Rise: Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
  • Endurance: 50,000 cycles minimum
  • Max. Amperage: 16 Amp
  • Grounding: Grounding
  • Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
  • Voltage: 120/277 VAC

Product Features

  • Function: Double-Pole
  • Color: Light Almond
  • Country Of Origin: United States
  • Grade: Commercial Specification Grade
  • Device Type: Toggle Switch
  • Voltage: 120/277 VAC

Mechanical Specifications

  • Termination: Side Wire
  • Terminal Accom.: 14-12 AWG

AC Horsepower Ratings

  • HP Rating: 1HP-120V 2HP-240V-277V

Environmental Specifications

  • Flammability: Rated V-2 per UL94
  • Operating Temperature: -40°C to 65°C


UPC 07847727306
GTiN 00078477273067
Warranty Length 10 yr
Size 46 H x 1.31 W x 0.92 D IN
Color Light Almond
Operating Temperature -40 C
Voltage 120/277 Volt
Type Toggle Switch
Applications Commercial
Mounting Type Box
Grade Commercial Specification
Country of Origin USA
Standard CSA,UL
Connection Type Side Wired
Horsepower 1 hp
Body Material Thermoplastic
Family Brand Name Leviton
Dielectric 1500 V
Flamability Class Rated V-2 Per UL94
Grounding Grounding
TC Connection Side Wired
Actuator Toggle
Amperage 20 Amp
Max Current 16 A
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Temperature Rise 150 %
Device Type Toggle Switch
Action DP
