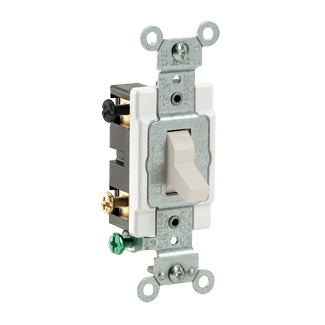

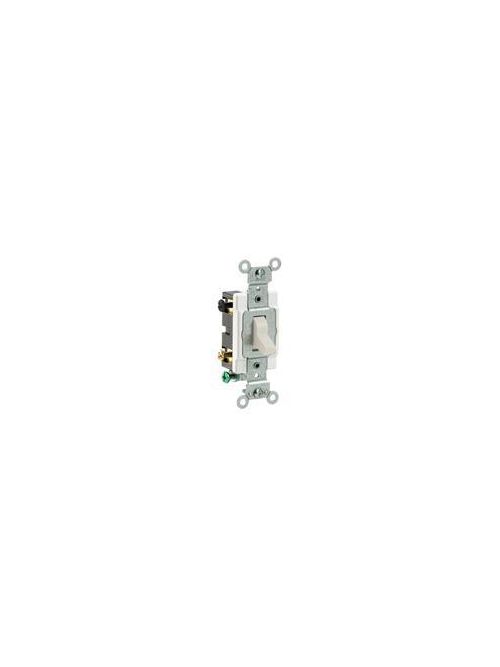

LEV CS420-2T 4W 20A COMM SW
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$27.17/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # CS420-2T
North Coast Part # 761012

Specifications

Mechanical Specifications

  • Termination: Side Wire

Electrical Specifications

  • Amperage: 20 A
  • Voltage: 120/277 VAC

Product Features

  • Amperage: 20 A
  • Function: 4-Way
  • Warranty: 10-Year Limited
  • HP Rating: 1HP-120V 2HP-240V-277V
  • Color: Light Almond
  • Standards and Certifications: UL/CSA
  • Strap Material: Steel
  • Country Of Origin: Please Contact Customer Service.
  • Grade: Commercial Specification Grade
  • Device Type: Toggle Switch
  • Body Material: Thermoplastic
  • Max. Amperage: 16 Amp
  • Grounding: Grounding
  • Termination: Side Wire
  • Actuator Material: Thermoplastic
  • Voltage: 120/277 VAC

Categories

Overview

GTiN 00078477273142
Warranty Length 10 yr
Size 46 H x 1.31 W x 0.92 D IN
Color Light Almond
Operating Temperature -40 To 120 C
Voltage 120/277 Volt
Type Toggle Switch
Applications Commercial
Mounting Type Box
Grade Commercial Specification
Standard CSA,UL
Connection Type Side Wired
Horsepower 1 hp
Body Material Thermoplastic
Family Brand Name Leviton
Grounding Grounding
TC Connection Side Wired
Actuator Toggle
Amperage 20 Amp
Max Current 16 A
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 4 Pole
Device Type Toggle Switch
Product UPC 07847727314
