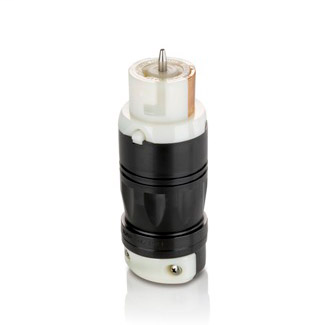

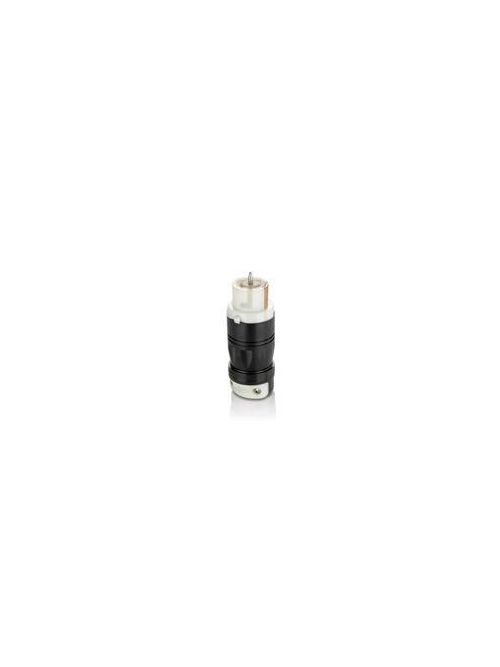

LEV CS8364C 50A 250VAC 3PH CONNECTO
$188.53/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # CS8364C
North Coast Part # 551926

Specifications

Material Specifications

  • Contact - Spring Value: 0.041inch thick Brass
  • Color: Black-White
  • Assembly Screws: Brass
  • Ground Post: Brass
  • Standard Cable Clamp: Nylon
  • Terminal Set Screw: SS 302/304
  • Terminal Block: 0.062inch thick Copper
  • Housing Material: Nylon
  • Ground Shunt: Bronze
  • Dust Shield: Santoprene TPE
  • Contact Rivet: Brass
  • Contact - Binding Plate: 0.100inch thick Brass
  • Cable Clamp Screw: Philips Head, SS 304
  • Center Pin: SS 302/304
  • Wiring Chamber: Nylon
  • Face Module: Nylon

Standards and Certifications

  • Warranty: Lifetime Limited
  • NOM: 057
  • UL 498: File E13399
  • CSA C22.2 No. 42: File 152105
  • RoHS: Compliant

Product Features

  • Color: Black-White
  • Device Type: Locking Connector
  • Brand: Black and White
  • Country Of Origin: Mexico
  • NEMA: Non-NEMA

Mechanical Specifications

  • Terminal ID: X, W, Y, Z and Green for ground
  • Cord Range: .680 - 1.125
  • Product ID: Ratings and Catalogue No. molded into face and stamped into shroud
  • Terminal Accom.: #10 min to #4max AWG Solid or Stranded Wire

Electrical Specifications

  • Amperage: 50 A
  • Wire: 4
  • Maximum Working Voltage: 3-Phase 250V as rated
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
  • Pole: 3
  • Voltage: 250 VAC
  • Grounding: Grounding
  • Phase: 3-Phase
  • Dielectric Voltage Withstand: 2000V minimum per UL 498

Environmental Specifications

  • Environment: Dry
  • Flammability: UL94V-2
  • Operating Temperature: -40°C to 75°C

videos

Overview

UPC 07847732639
GTiN 00078477326398
Warranty Length Lifetime
Color Black/White
Operating Temperature 75 C
Voltage 250 Volt
Type Straight
Material Nylon
Applications Industrial
Grade Industrial
Country of Origin Mexico
Standard UL Listed,CSA,NOM Certified
Family Brand Name Leviton
Ground Rod Type Brass
Wire Count 4
NEMA Non-NEMA
Environment Dry
Flamability Class Rated V-2 Per UL94
Grounding Grounding
Contact Material Brass
Actuator Brass
Amperage 50 Amp
Environmental Conditions Flammability (Rated V-0 per UL94)
Number of Poles 3 Pole
Number of Wires 4
Temperature Rise 150 %
Device Type Locking Connector
Sub Brand Black & White
