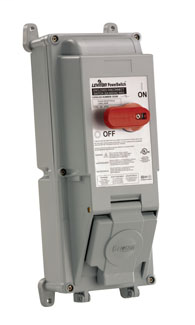

LEV EDSR-23 DISC SWITCH RECP
$425.29/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # EDSR-23
North Coast Part # 761823

Features

  • Accepts 20A or 30A, up to 600V, V-0 Max Locking Receptacles (sold separately)
  • 4 Mounting feet included (5 position settings)
  • Space provided for bottom or top conduit entry
  • Captive Stainless Steel screws won't fall out when cover is open
  • Bottom hinge mechanism pivots 180 degrees for easy access during installation and maintenance
  • Rated to IP54, Type 3R standards when cover is closed
  • Rated to IP66, Type 4X standards when used with Wetguard seal package and Plugs
  • EDSR-23 supplied with: a) Ground Bracket and Green Wire b) 5 pieces of wire accommodating all receptacle - switch connections (1-white, 1-green, 3-black) c) Receptacle Voltage Labels: After receptacle installation, select the matching amperage/voltage combination label and affix to enclosure label. d) Wetguard seal package for use with corrosion resistant receptacles and Wetguard Plugs

Specifications

Product Features

  • Amperage: 30 A
  • Flammability: Rated V-0 per UL 94
  • IP Rating: IP 54 Splashproof
  • Color: Gray
  • Standards and Certifications: UL/CSA
  • Country Of Origin: Mexico
  • Handle Material: Valox 357
  • Body Material: Valox 357
  • Fuse Type: NA
  • Pole: 2, 3, or 4
  • HP Rating: Receptacle Dependant
  • Warranty: 2-Year Limited
  • Type: Non-Fused
  • Voltage: 600 VAC

Overview

UPC 07847724204
GTiN 00078477242049
Warranty Length 2 yr
Color Gray
Voltage 600 Volt
Type Non-Fused
Material Valox 357
Applications Industrial
Country of Origin Mexico
Standard CSA,UL
Body Material Valox 357
Family Brand Name Leviton
Flamability Class Rated V-0 Per UL 94
Actuator Lever
Amperage 30 Amp
IP Rating IP54
Environmental Conditions Flammability (Rated V-2 per UL94)
Contact Rating 30 A
Number of Poles 2-4 Pole
Interrupt Rating 10000 A
Sub Brand PowerSwitch
