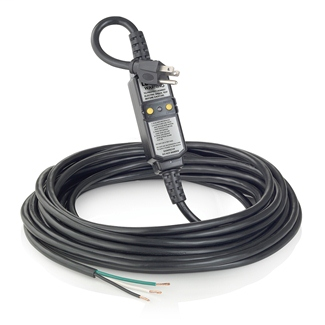

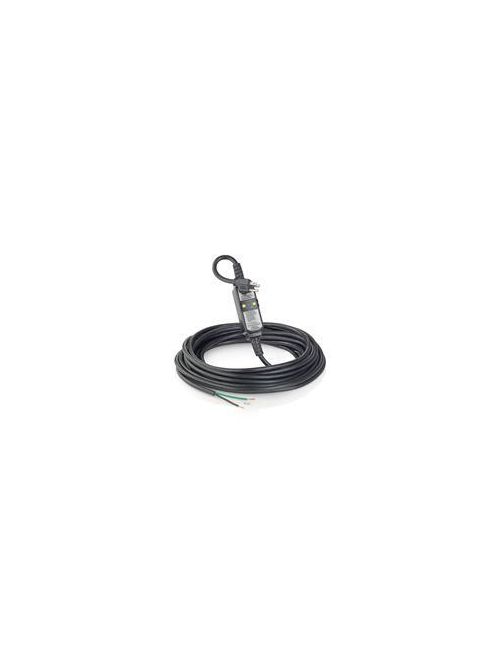

LEV GFA15-37E 15A-125V GFI 37'CORD
$115.24/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # GFA15-37E
North Coast Part # 548273

Features

  • Rainproof, Outdoor rated GFCI Module.
  • Fully complies with NEC and OSHA regulations for construction sites.
  • Automatically resets to ON when plugged in or after power interruption.
  • Power Indicator lamp goes OFF if GFCI trips, power is interrupted or line cord is unplugged.
  • Open-Neutral Protection immediately trips the GFCI if the neutral conductor on the line side is opened, eliminating the possibility of the GFCI Cord Set having a live hot leg.
  • Inline GFCI unit features a rainproof, ultrasonically welded enclosure to ensure long service life.
  • UL Recognized Component.
  • CSA Certified.

Specifications

Material Specifications

  • Body Material: Polycarbonate
  • Blades/Contacts: Brass
  • Cord Type: 14/3 SJTW

Standards and Certifications

  • NOM: 057
  • NEMA: WD-6
  • ANSI: C-73
  • UL 498: File E-48380
  • UL 943: Class A (GFCI)
  • CSA Standard: C22.2 No 144

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Current Interrupting: 2 kA
  • Pole: 2
  • Voltage: 120 VAC
  • Trip Level: 5mA plus or minus 1mA

Mechanical Specifications

  • Product ID: Ratings marked on device label

AC Horsepower Ratings

  • At Rated Voltage: 3/4 Horsepower

Environmental Specifications

  • Flammability: Rated V-2 per UL94
  • Operating Temperature: -35°C to 66°C

videos

Overview

UPC 07847739929
GTiN 00078477399293
Length 37 in
Width 1.556 in
Color Black
Operating Temperature 66 C
Voltage 120 Volt
Type GFCI Cord Set
Material Polycarbonate
Applications Commercial, Industrial
Height 1.52 in
Standard ANSI C-73
Blade Type Brass
Horsepower 3/4 hp
Body Material Polycarbonate
Family Brand Name Leviton
Wire Count 3
NEMA WD-6
Flamability Class Rated V-2 Per UL94
Contact Material Brass
Amperage 15 Amp
Environmental Conditions Flammability (Rated V-2 per UL94)
Number of Poles 2 Pole
Interrupt Rating 2 kA
Trip Range 5 MILAMP
