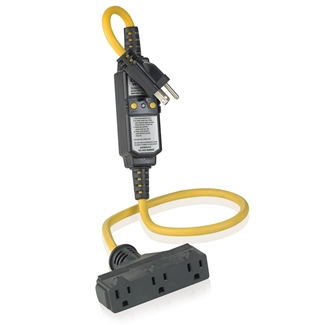

Leviton GFA15-3TC 120 Volt 15 Amp 2-Pole 3-Wire NEMA 5-15P 3/4 Hp Black Polycarbonate Straight Blade GFCI Cord Set
$74.97/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # GFA15-3TC
North Coast Part # 492214

Specifications

Material Specifications

  • Color: Black
  • Body Material: Polycarbonate
  • Blades/Contacts: Brass

Standards and Certifications

  • Warranty: 2-Year Limited
  • NOM: 057
  • NEMA: WD-6
  • ANSI: C-73
  • UL 498: File E-48380
  • UL 943: Class A (GFCI)
  • CSA C22.2: File LR-57811

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Current Interrupting: 2 kA
  • Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
  • Pole: 2
  • Voltage: 120 VAC
  • Grounding: GFCI Ground Fault
  • Trip Level: 5mA plus or minus 1mA

Product Features

  • Color: Black
  • Country Of Origin: China

Mechanical Specifications

  • Product ID: Ratings marked on device label
  • Cord Length: 3 FT.
  • Cord Type: 14/3 SJTW

AC Horsepower Ratings

  • At Rated Voltage: 3/4 Horsepower

Environmental Specifications

  • Flammability: Rated V-2 per UL94
  • Operating Temperature: -35°C to 66°C

videos

Overview

UPC 07847739930
GTiN 00078477399309
Length 3 ft Cord, 7.34 in Adapter
Warranty Length 2 yr
Width 1.556 in
Color Black
Operating Temperature 66 C
Voltage 120 Volt
Type 2-Pole
Material Polycarbonate
Applications Commercial, Industrial
Height 1.52 in
Country of Origin China
Standard ANSI C-73
Blade Type Brass
Horsepower 3/4 hp
Body Material Polycarbonate
Temperature Rating -35 to 66 C
Family Brand Name Leviton
Construction Brass Contact, Polycarbonate Body
Wire Count 3
NEMA WD-6
Flamability Class Rated V-2 Per UL94
Grounding GFCI Ground Fault
Contact Material Brass
Amperage 15 Amp
Environmental Conditions Flammability (Rated V-2 per UL94)
Number of Poles 2 Pole
Temperature Rise 150 %
Interrupt Rating 2 kA
Trip Range 5 MILAMP
