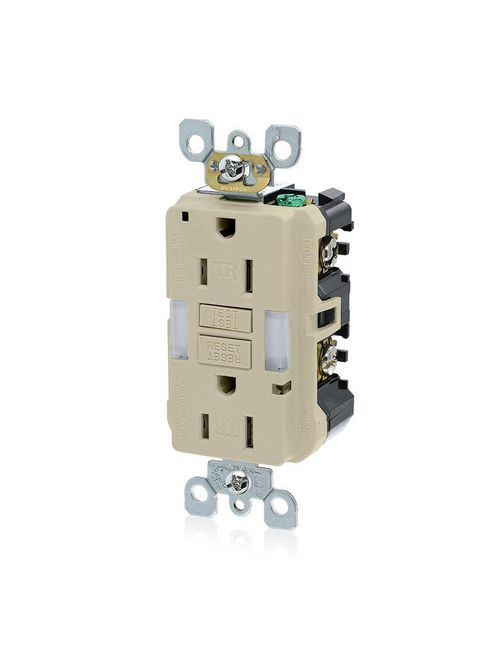

LEV GFNL1-I 15A-125V TR DUPLEX GUID
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$49.18/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # GFNL1-I
North Coast Part # 1158948

Features

  • Sensor provides automatic ON/OFF based on ambient lighting
  • Dual lens provides visible light with a variety of plugs or transformers
  • Custom designed lenses with edge-mounted LEDs improve light dispersion
  • Is energy-efficient, uses approx. 1W of electricity - No bulbs to replace
  • Saves space by eliminating the need to use an outlet for a plug-in night light
  • Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
  • On initial power up, tests the GFCI within 3 seconds
  • Auto-monitoring exceeds the UL requirement
  • Auto adapts and shifts to more frequent testing if potential problem is detected
  • Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
  • Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
  • Electronics are designed to minimize any false triggers
  • Reduced depth makes it easier to install in any electrical box, even shallow ones
  • Terminals allow for easy wiring options – back and side wire capable
  • External back wire clamps provide visual indication of proper wire seating
  • Withstands high torque and resists wire pullout
  • Standard brass self-grounding clip
  • Trip threshold meets or exceeds UL requirements for tripping time
  • Improved immunity to high-frequency noise reduces nuisance tripping
  • Advanced electronics design provides superior resistance to electrical surges and over-voltages
  • Compatible with all Decora devices and wallplates; available in select Decora colors
  • UL Fed Spec WC-596 rated

Specifications

Material Specifications

  • Line Contacts: Brass Double-Wipe .031 Thick
  • Product ID: Ratings are permanently marked on device
  • Face Material: Thermoplastic
  • Terminal Accom.: 14-10 AWG
  • Terminal Screws: Plated Steel
  • Notes: Wallplate Sold Separately
  • Grounding Screw: Plated Steel
  • Body Material: Thermoplastic
  • Yoke: Zinc-Plated Steel
  • Clamps: Brass
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral

Standards and Certifications

  • NOM: Yes
  • CSA C22.2 No. 42: Yes
  • CSA-C22.2 No. 144.1-06: File LR-57811
  • UL498: Yes
  • Fed Spec WC-596: Yes
  • ANSI: C-73
  • UL 943: File E48380
  • NEMA: WD-6

Electrical Specifications

  • Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
  • Operating Temperature: -35C to +66C
  • Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
  • Short Circuit Current Rating: 10KA

Product Features

  • Amperage: 15 A
  • Warranty: 2-Year Limited
  • Wire: 3
  • NEMA: 5-15R
  • Color: Ivory
  • Country Of Origin: China
  • Brand: SmartlockPro
  • Strap Material: Galvanized Steel
  • Fed Spec WC-596: Yes
  • Feature: Self-Test
  • ANSI: C-73
  • Pole: 2
  • Voltage: 125 VAC
  • Grounding: Self Grounding
  • Trip Level: Class A, 5mA plus or minus 1mA
  • Grade: Residential/Commercial Specification Grade
  • Termination: Back & Side 20A Feed-Thru
  • Tamper Resistant: Yes
  • At Rated Voltage: 1 HP
  • Type: Combination with Light
  • Standards and Certifications: UL/CSA

Mechanical Specifications

  • Face Material: Thermoplastic
  • Feature: Self-Test
  • ANSI: C-73
  • Wire: 3
  • Grounding: Self Grounding
  • Termination: Back & Side 20A Feed-Thru
  • Type: Combination with Light
  • Product ID: Ratings are permanently marked on device
  • Brand: SmartlockPro
  • Strap Material: Galvanized Steel
  • Warranty: 2-Year Limited
  • Terminal Accom.: 14-10 AWG
  • NEMA: 5-15R
  • Notes: Wallplate Sold Separately
  • Fed Spec WC-596: Yes
  • Body Material: Thermoplastic
  • Trip Level: Class A, 5mA plus or minus 1mA
  • Tamper Resistant: Yes
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Amperage: 15 A
  • Color: Ivory
  • Grade: Residential/Commercial Specification Grade
  • Pole: 2
  • Voltage: 125 VAC
  • Standards and Certifications: UL/CSA

AC Horsepower Ratings

  • Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
  • At Rated Voltage: 1 HP
  • Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
  • Short Circuit Current Rating: 10KA

Environmental Specifications

  • Line Contacts: Brass Double-Wipe .031 Thick
  • Face Material: Thermoplastic
  • Terminal Screws: Plated Steel
  • Notes: Wallplate Sold Separately
  • Operating Temperature: -35C to +66C
  • Grounding Screw: Plated Steel
  • Body Material: Thermoplastic
  • Yoke: Zinc-Plated Steel
  • Clamps: Brass

videos

Overview

UPC 07847771477
GTiN 00078477714775
Warranty Length 2 yr
Color Ivory
Operating Temperature -35 C
Voltage 125 Volt
Type Combination With Light
Applications Commercial/Industrial
Mounting Type Screw
Grade Residential/Commercial Specification
Country of Origin China
Standard ANSI C-73,CSA,UL
Horsepower 1 hp
Face Material Thermoplastic
Body Material Thermoplastic
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R,WD-6
Dielectric 1250 V
Grounding Self-Grounding
Amperage 15 Amp
Short Circuit Current 10 kA
Number of Poles 2 Pole
Temperature Rise 150 %
