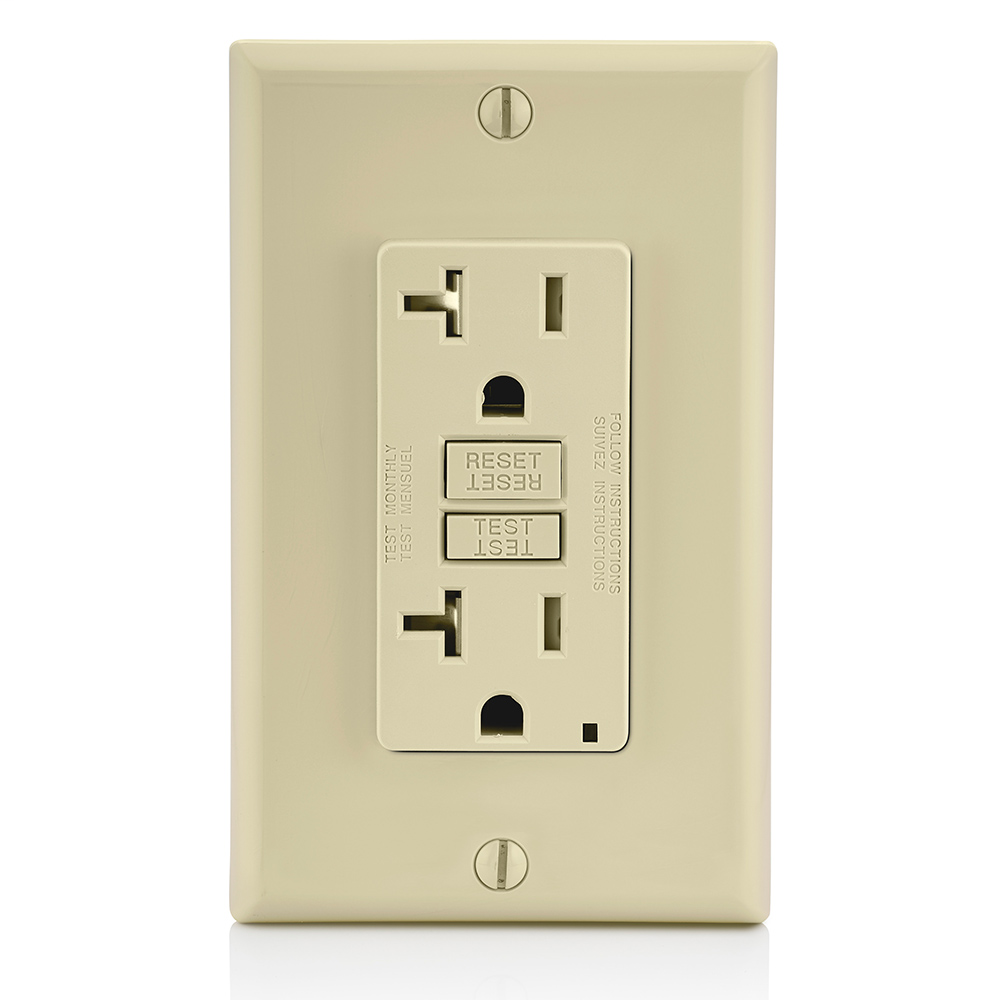

LEV GFTR2-FI TR 20 AMP NAFTA GFCI I

Features

• Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
• On initial power up, tests the GFCI within 3 seconds
• Auto-monitoring exceeds the UL requirement
• Auto adapts and shifts to more frequent testing if potential problem is detected
• Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
• Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
• Electronics are designed to minimize any false triggers
• Reduced depth makes it easier to install in any electrical box, even shallow ones
• Terminals allow for easy wiring options – back and side wire capable
• External back wire clamps provide visual indication of proper wire seating
• Withstands high torque and resists wire pullout
• Standard brass self-grounding clip
• Trip threshold meets or exceeds UL requirements for tripping time
• Improved immunity to high-frequency noise reduces nuisance tripping
• Advanced electronics design provides superior resistance to electrical surges and over-voltages
• Compatible with all Decora devices and wallplates; available in select Decora colors
• UL Fed Spec WC-596 rated

Specifications

Material Specifications

• Line Contacts: Brass Triple-Wipe
• Product ID: Ratings are permanently marked on device
• Face Material: Thermoplastic
• Terminal Accom.: 14-10 AWG
• Terminal Screws: Plated Steel
• Notes: w/ Wallplate
• Grounding Screw: Plated Steel
• Body Material: Polycarbonate
• Yoke: Zinc-Plated Steel
• Clamps: Brass
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral

Standards and Certifications

• NOM: Yes
• CSA C22.2 No. 42: Yes
• CSA-C22.2 No. 144.1-06: File LR-57811
• MIL-SPEC: A-A-55459-SB
• UL498: Yes
• Fed Spec WC-596: Yes
• ANSI: C-73
• UL 943: File E48380

Electrical Specifications

• Flammability: Rated V-2 per UL 94
• Operating Temperature: -35C to +66C
• Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
• Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
• Short Circuit Current Rating: 10KA

Product Features

• Amperage: 20 A
• Warranty: 2-Year Limited
• Wire: 3
• NEMA: 5-20R
• Color: Ivory
• Country Of Origin: Mexico
• Brand: SmartlockPro
• Strap Material: Galvanized Steel
• Fed Spec WC-596: Yes
• Feature: Self-Test
• Grade: Residential/Commercial Specification Grade
• Pole: 2
• Voltage: 125 VAC
• Grounding: Self Grounding
• Trip Level: Class A, 5mA plus or minus 1mA
• Termination: Back & Side
• Tamper Resistant: Yes
• At Rated Voltage: 1 HP
• Type: NAFTA/ARRA
• Standards and Certifications: UL/CSA

Mechanical Specifications

• Face Material: Thermoplastic
• Feature: Self-Test
• Wire: 3
• Grounding: Self Grounding
• Termination: Back & Side
• Type: NAFTA/ARRA
• Product ID: Ratings are permanently marked on device
• Brand: SmartlockPro
• Strap Material: Galvanized Steel
• Warranty: 2-Year Limited
• Terminal Accom.: 14-10 AWG
• NEMA: 5-20R
• Fed Spec WC-596: Yes
• Body Material: Polycarbonate
• Trip Level: Class A, 5mA plus or minus 1mA
• Tamper Resistant: Yes
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Amperage: 20 A
• Color: Ivory
• Grade: Residential/Commercial Specification Grade
• Pole: 2
• Voltage: 125 VAC
• Standards and Certifications: UL/CSA

AC Horsepower Ratings

• Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
• At Rated Voltage: 1 HP
• Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
• Short Circuit Current Rating: 10KA

Environmental Specifications

• Line Contacts: Brass Triple-Wipe
• Face Material: Thermoplastic
• Terminal Screws: Plated Steel
• Notes: w/ Wallplate
• Operating Temperature: -35C to +66C
• Grounding Screw: Plated Steel
• Body Material: Polycarbonate
• Yoke: Zinc-Plated Steel
• Clamps: Brass
