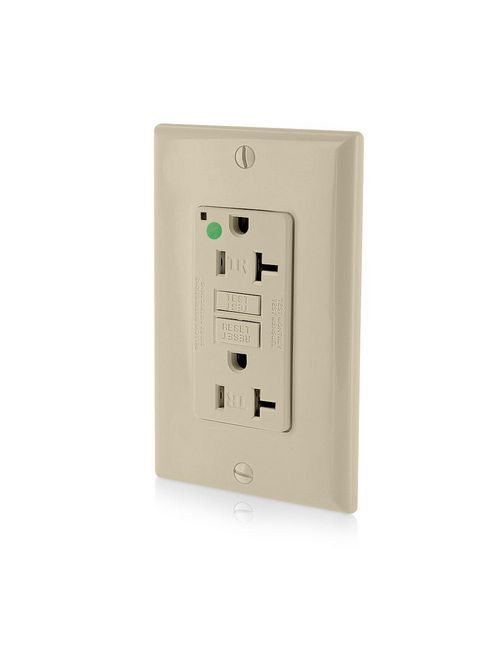

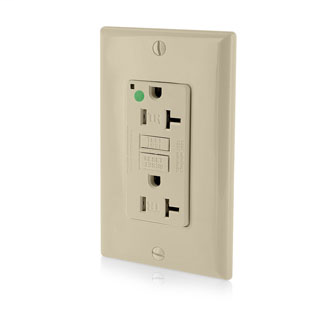

LEV GFTR2-HGI 20A SLIMLINE TR HG GF
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$54.33/ea
In Stock | 5 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # GFTR2-HGI
North Coast Part # 1164482

Specifications

Material Specifications

  • Ground Clips: Brass
  • Line Contacts: Brass
  • Face Material: PBT
  • Terminal Screws: Plated Steel
  • Shutter Mechanism: Delrin® Acetal
  • Strap Material: Galvanized Steel
  • Grounding Screw: Plated Steel
  • Body Material: Polycarbonate
  • Terminal Clamp: Brass

Warranty

  • Warranty: 2-Year Limited

Standards and Certifications

  • ANSI: C-73
  • Certification/Listing: UL, CSA, NOM-ANCE
  • NEMA: WD-1 & WD-6
  • Applicable Standards: UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Short Circuit Current Rating: 10kA
  • Pole: 2
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • Function: GFCI
  • NEMA: 5-20R
  • Color: Ivory
  • Brand: SmartlockPro
  • Country Of Origin: China
  • Feature: Wallplate Included, Tamper-Resistant, Power Indication
  • Device Type: Duplex Receptacle Outlet
  • Grade: Extra Heavy-Duty Hospital Grade

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings are permenantly marked on device
  • Terminal Accom.: 14-10 AWG solid or stranded
  • Termination: Back or Side Wire

AC Horsepower Ratings

  • At Rated Voltage: 1 HP

Environmental Specifications

  • Flammability: Rated V-0 per UL 94
  • Operating Temperature: -35C to +66C

Categories

Overview

UPC 07847772380
Item Long Description 20 Amp, 125 Volt, SmartlockPro Slim Self-Test GFCI Receptacle, Extra-Heavy Duty Hospital Grade, Tamper-Resistant, NEMA 5-20R, 20A Feed-Through, 2P, 3W, Matching Wallplate Included - IVORY
GTiN 00078477723807
Warranty Length 2 yr
Color Ivory
Operating Temperature -35 C
Voltage 125 Volt
Type Self-Test, Tamper-Resistant
Material Polycarbonate/PBT
Applications For Extra-Heavy Duty Hospital Grade
Grade Hospital
Country of Origin China
Standard ANSI C-73,CSA C22.2 No. 42 & 144,FedSpec W-C-596,UL 498,UL 943
Horsepower 1 hp
Face Material PBT
Body Material Polycarbonate
Temperature Rating -35 to 66 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-20R,WD-1,WD-6
Certifications CSA,NOM-ANCE,UL
Flamability Class Rated V-0 Per UL 94
Grounding Self-Grounding
Amperage 20 Amp
Short Circuit Current 10 kA
Number of Poles 2 Pole
Number of Wires 3
Device Type Duplex Receptacle Outlet
Sub Brand Smart-Lock Pro
