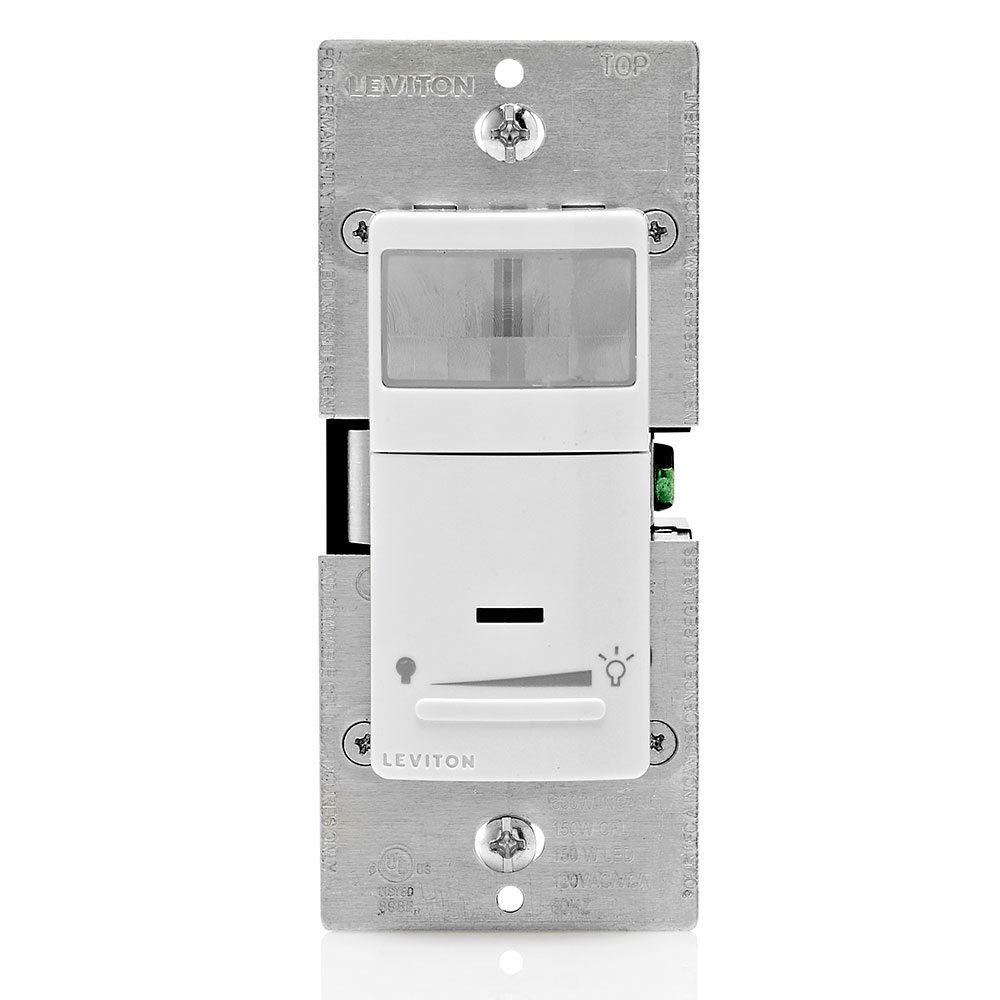

LEV IPSD6-1LZ OCCUPANCY SENSOR 600W
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$61.34/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # IPSD6-1LZ
North Coast Part # 825994

Features

  • Universal Light Control & Dimmer - Easily Switches Incandescent and Dimmable CFL, LED bulbs
  • Automatic-ON/Automatic OFF operation for seamless energy management
  • Single Pole or 3 Way when used with a standard 3-way switch
  • Low-Profile design eliminates an obtrusive "scanning device" look. Elegant styling compliments any interior and coordinates with Leviton's popular line of Decora┬« wiring devices
  • 180 degree field-of-view provides approximately 900 square feet of coverage suitable for bathrooms, basements, garages, utility rooms and a variety of other residential areas
  • Convenient push-button provides Manual OFF light switching at any time
  • Segmented lens provides optimum sensitivity and performance. It is designed with an extensive "minor motion" area where even slight body movements will be detected
  • Four optional manual adjustments for delayed-OFF time settings maximize energy savings: 30 seconds (for walking test), 10 minutes, 20 minutes and 30 minutes
  • LED Indicator Light flashes when sensor detects motion to verify detection is active
  • Fits in standard wallbox and replaces single-pole wall switch
  • Neutral wire not required, suitable for retrofit and new construction applications
  • Can be used to comply with 2016 California Title 24, Part 6 Vacancy Control Device Requirements
  • Five-Year Limited warranty

Specifications

Product Features

  • Warranty: 5-Year Limited
  • Pattern Degrees: 180
  • Coverage (Sq.Ft.): 900 Sq. Ft.
  • Sensor Type: Occupancy
  • Color: White, Ivory, Light Almond
  • California Title 24: No
  • Standards and Certifications: CUL/US
  • Country Of Origin: China
  • Neutral Wire Connection: Not Required
  • Load Rating: 600W Incand 150W LED/CFL
  • Neutral: Not Required
  • Time Adjustment: 30s-30m
  • Adjustment: Manual
  • Technology: Passive Infrared
  • Switch Type: Single-Pole & 3-Way Manual ON

Overview

UPC 07847758430
Item Long Description Occupancy/Motion detector and dimmer, 180 Degree PIR Wall Box Sensor, Single Pole & 3-Way, 600 Watt Incandescent, 150W Dimmable LED & CFL. White assembled on the device, ivory and light almond color change kit included. Wallplate/Faceplate Not Included.
GTiN 00078477584309
Warranty Length 5 yr
Size 4.13 H x 1.75 W x 1.22 D IN
Color White
Voltage 120 Volt
Type Dimmer Wall Switch, 3 Way
Applications For Commercial Use, Most Dimmable LED, Dimmable CFL and Incandescent Loads
Mounting Type Wall
Country of Origin China
Standard US,cUL
Frequency 60 Hz
Switch Type 3-Way,Single-Pole
Temperature Rating 0 - 40 C
Family Brand Name Leviton
Response Time 30 min
Blade Dimensions 1-3/4 in W x 1.22 in D x 4.13 in H
Environmental Conditions Humidity (20% To 90% Non-Condensing),Operating Temperature Range (0 To +40 DEG C)
Sensor Type Occupancy
Number of Poles 1 Pole
Coverage 900 sq-ft
Sub Brand Decora
