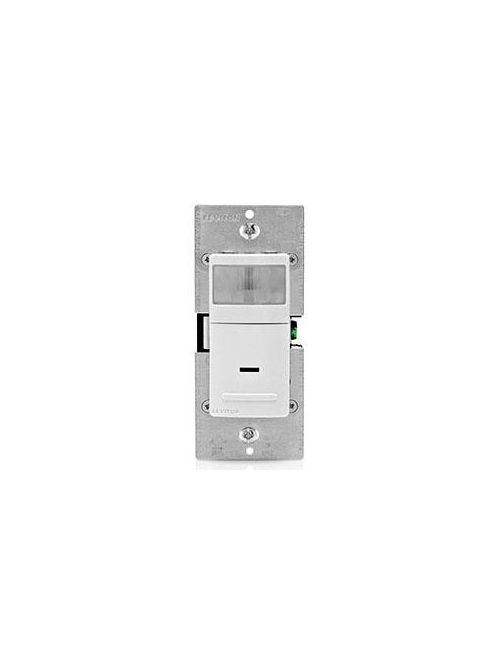

LEV IPV0R-1LZ OCCUPANCY SENSOR REMO
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$40.15/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # IPV0R-1LZ
North Coast Part # 818183

Features

  • Manual ON/Automatic OFF operation in accordance with California Title 24 2005 requirements when used with IPV15.
  • Automatic ON/Automatic OFF operation when used with IPS15.
  • Low-Profile design eliminates an obtrusive "scanning device" look. Elegant compliments any interior and coordinates with Leviton's popular line of Decora┬« wiring devices.
  • 180 degree field-of-view provides approximately 900 square feet of coverage suitable for bathrooms, basements, garages, utility rooms and a variety of other residential areas
  • Convenient push-button provides Manual ON/OFF light switching at any time.
  • Segmented fresnel lens provides optimum sensitivity and performance. It is designed with an extensive "minor motion" area where even slight body movements will be detected.
  • Four optional manual adjustments for delayed-OFF time settings maximize energy savings: 30 seconds, 10 minutes, 20 minutes and 30 minutes.
  • LED Indicator Light flashes when sensor detects motion to verify detection is active.
  • Requires a neutral (white) wire connection.
  • UL Listed and CSA Certified, complies with California Title 24 2005 Energy Code and FCC regulations.

Specifications

Mechanical Specifications

  • Switch Type: Single-Pole
  • Neutral Wire Connection: Required

Warranty

  • Warranty: 5-Year Limited

Electrical Specifications

  • Frequency: 60Hz
  • Voltage: 120 VAC

Product Features

  • Ordering Notes: Wallplate Sold Separately
  • Coverage (Sq.Ft.): 900
  • Sensor Type: Wall Switch
  • Color: White, Ivory, Light Almond
  • California Title 24: Yes
  • Country Of Origin: China
  • Product Line: IPV0R
  • Technology: Passive Infrared

Overview

UPC 07847757076
GTiN 00078477570760
Warranty Length 5 yr
Size 4.13 H x 1.75 W x 1.22 D IN
Color White
Type Remote
Applications For Commercial use
Mounting Type Wall
Country of Origin China
Frequency 60 Hz
Switch Type Single-Pole
Temperature Rating 0 - 40 C
Family Brand Name Leviton
Lens Type LED
Response Time 30 sec - 30 min
Blade Dimensions 1-3/4 in W x 1.22 in D x 4.13 in H
Environmental Conditions Humidity (20% To 90% Non-Condensing),Operating Temperature Range (0 To +40 DEG C)
Sensor Type Passive Infrared
Number of Poles 1 Pole
Coverage 900 sq-ft
Sub Brand Decora
Voltage 120 VAC
