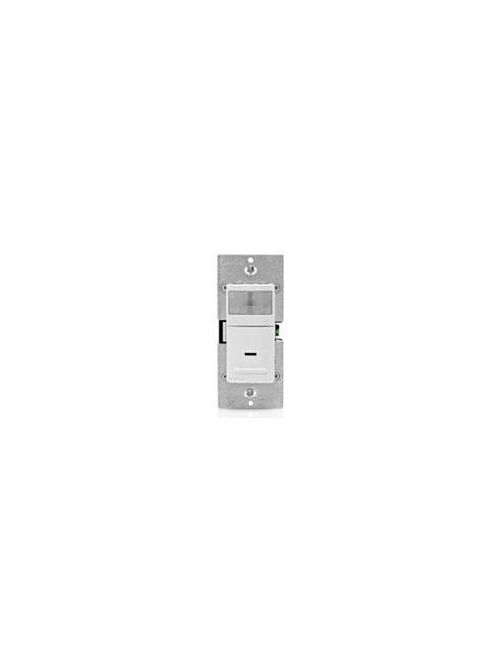

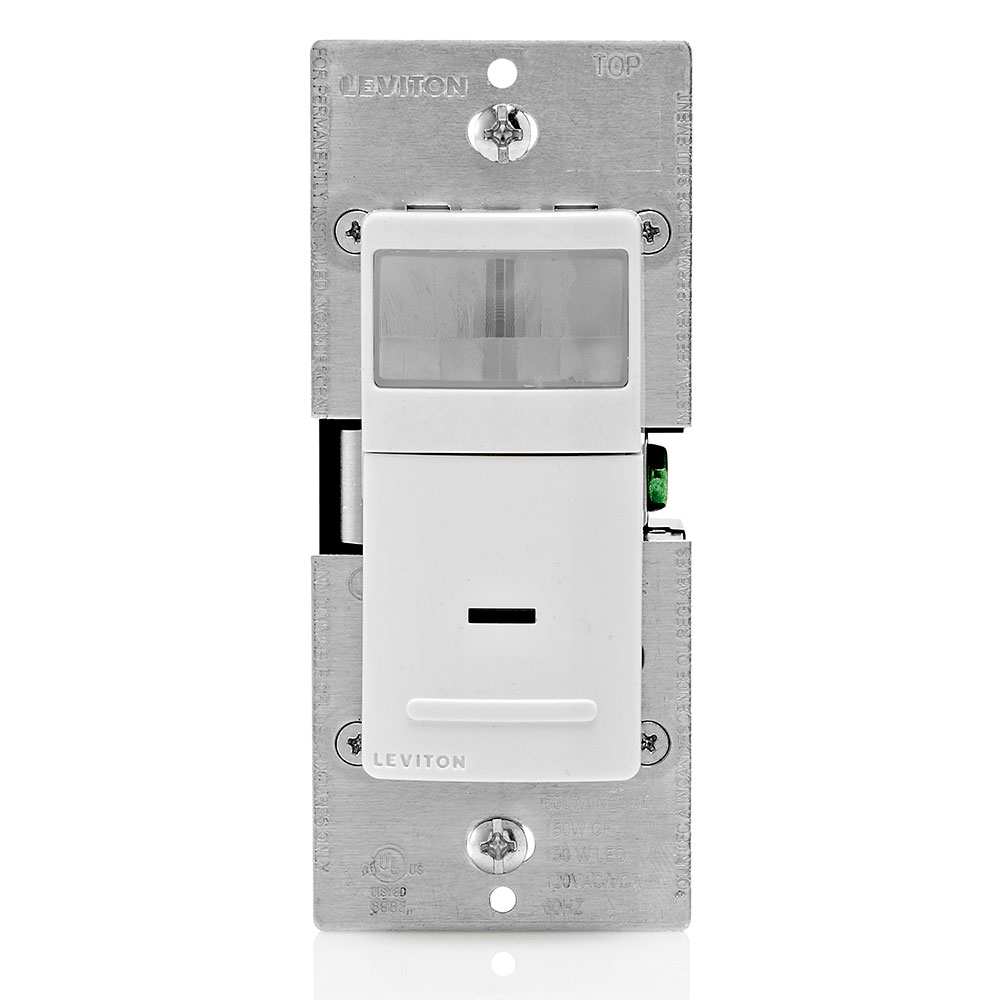

LEV IPV15-1LZ OCC. SENSOR 1800W
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$57.46/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # IPV15-1LZ
North Coast Part # 818173

Features

  • Universal Light Control - Switches Incandescent, CFL, LED and Fluorescent Ballasts using relay technology
  • Manual-ON/Automatic OFF operation for seamless energy management
  • Low-Profile design eliminates an obtrusive "scanning device" look. Elegant styling compliments any interior and coordinates with Leviton's popular line of Decora┬« wiring devices
  • 180 degree field-of-view provides approximately 900 square feet of coverage suitable for bathrooms, basements, garages, utility rooms and a variety of other residential areas
  • Convenient push-button provides Manual OFF light switching at any time
  • Segmented lens provides optimum sensitivity and performance. It is designed with an extensive "minor motion" area where even slight body movements will be detected
  • Four optional manual adjustments for delayed-OFF time settings maximize energy savings: 30 seconds (for walking test), 10 minutes, 20 minutes and 30 minutes
  • LED Indicator Light flashes when sensor detects motion to verify detection is active
  • Unit can be used for 120V lighting. Compatibile with both electronic and magnetic ballasts or 1/2 HP loads
  • Relay switches at zero crossing point of the AC power curve to ensure maximum contact life and compatibility with electronic ballasts
  • Fits in standard wallbox; Single Pole or Multi Location with IPV0R
  • Neutral wire required
  • Can be used to comply with 2016 California Title 24, Part 6 Vacancy Control Device Requirements
  • Five-Year Limited warranty.

Specifications

Material Specifications

  • Color: White, Ivory, Light Almond

Warranty

  • Warranty: 5-Year Limited

Performance Specifications

  • Coverage (Sq.Ft.): 900 Sq. Ft.

Standards and Certifications

  • California Title 24: Yes
  • Standards and Certifications: CUL/US LISTED 1E83 PHOTOELECTRIC SWITCH/NOM-ANCE REQ

Control Specifications

  • Pattern Degrees: 180
  • Time Adjustment: 30s-30m

Input Characteristics

  • Adjustment: Manual

Mechanical Specifications

  • Voltage: 9.18 VDC
  • Sensor Type: Occupancy
  • Switch Type: Single-Pole & 3-Way

Electrical Specifications

  • Load Rating: 1800W Incand, 600W LED/CFL, 1800VA Magnetic Ballast, 1/2 HP
  • Sensor Technology: Passive Infrared
  • Neutral: Required
  • Technology: Passive Infrared

Overview

GTiN 00078477590492
Warranty Length 5 yr
Size 4.13 H x 1.75 W x 1.22 D IN
Color White
Voltage 120 Volt
Type Relay Sensor
Applications For Commercial use
Mounting Type Wall, Surface
Standard CA Title 20 Code Compliance,CA Title 24 Code Compliance,UL Listed
Frequency 60 Hz
Switch Type 3-Way,Single-Pole
Temperature Rating 0 - 40 C
Family Brand Name Leviton
Certifications CUL/US LISTED 1E83 PHOTOELECTRIC SWITCH/NOM-ANCE REQ
Response Time 30 min
Blade Dimensions 1-3/4 in W x 1.22 in D x 4.13 in H
Environmental Conditions Humidity (20% To 90% Non-Condensing),Operating Temperature Range (0 To +40 DEG C)
Sensor Type Occupancy
Number of Poles 1 Pole
Coverage 900 sq-ft
Sub Brand Decora
Product UPC 07847759049
