Manufacturer Leviton
Mfg Catalog # LB130
North Coast Part # 1556643


  • SIMPLE - An all plug-on design - no wiring to the circuit breaker (applications up to 60A when using copper wire or 50A when using aluminum wire)
  • PRECISION - More precise trips based on current, even in extreme temperatures: -40ºC to 85ºC, without re-rating
  • EASY - Color indicators in the handle to easily see operational status at-a-glance.


Electrical Specifications

  • Amperage: 30 A
  • Pole: 1
  • Type: Standard
  • Voltage: 120 VAC
  • Short Circuit Current Rating: 10 KA

Product Features

  • Warranty: 10-Year Limited
  • Dimensions: 3.9" H x 1.0" W x 3.1" D
  • Weight: 0.42 lbs.
  • Country Of Origin: Mexico
  • Wiring: All Plug-on
  • Operating Temperature: -40°C to 85°C
  • Smart: No

Standards & Certifications

  • CSA-C22.2 No. 5-02: Yes
  • EMC Compatibility: Yes
  • FCC: Yes
  • UL 489: Yes
  • RoHS: Yes


UPC 07847781445

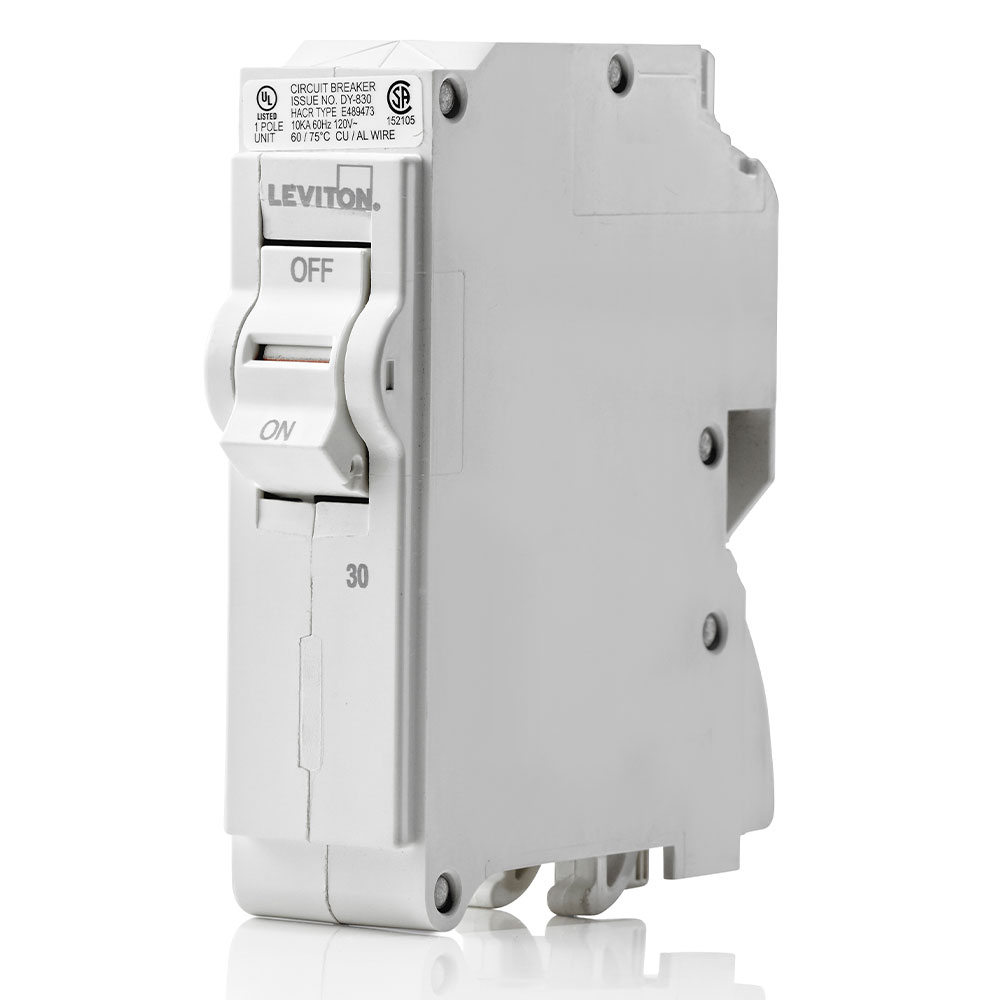

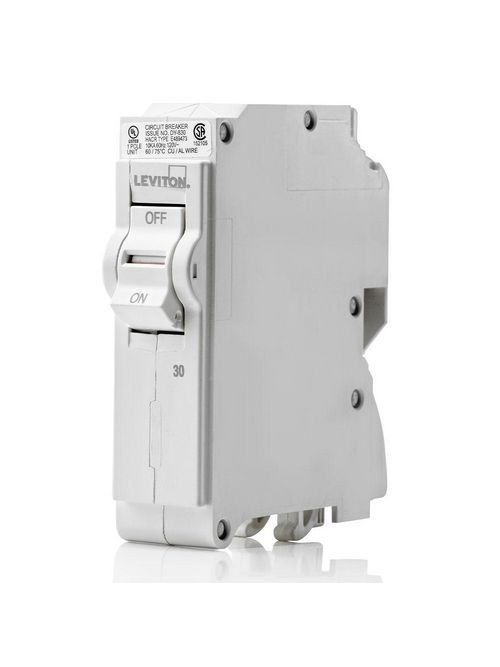

Item Long Description Branch Circuit Breaker, Standard 1-Pole 30A 120V, 10KA Interrupt Rating
GTiN 00078477814451
Warranty Length 10 yr
Operating Temperature -40 C
Type Standard
Weight 0.42 lb
Country of Origin Mexico
Family Brand Name Leviton
Amperage 30 Amp
Short Circuit Current 10 kA
Number of Poles 1 Pole
Voltage 120 Volt
