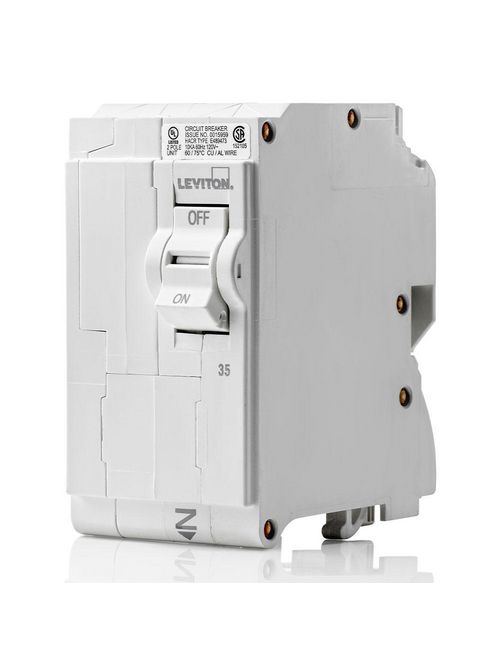

LEV LB235 RCB WH BX1/00/005

Features

• SIMPLE - An all plug-on design - no wiring to the circuit breaker (applications up to 60A when using copper wire or 50A when using aluminum wire)
• PRECISION - More precise trips based on current, even in extreme temperatures: -40ºC to 85ºC, without re-rating
• EASY - Color indicators in the handle to easily see operational status at-a-glance.

Specifications

Electrical Specifications

• Amperage: 35 A
• Pole: 2
• Type: Standard
• Voltage: 120/240 VAC
• Short Circuit Current Rating: 10 KA

Product Features

• Warranty: 10-Year Limited
• Dimensions: 3.9" H x 2.0" W x 3.1" D
• Weight: 0.85 lbs.
• Country Of Origin: Mexico
• Wiring: All Plug-on
• Operating Temperature: 0°C to 40°C
• Smart: No

Standards & Certifications

• CSA-C22.2 No. 5-02: Yes
• EMC Compatibility: Yes
• FCC: Yes
• UL 489: Yes
• RoHS: Yes
