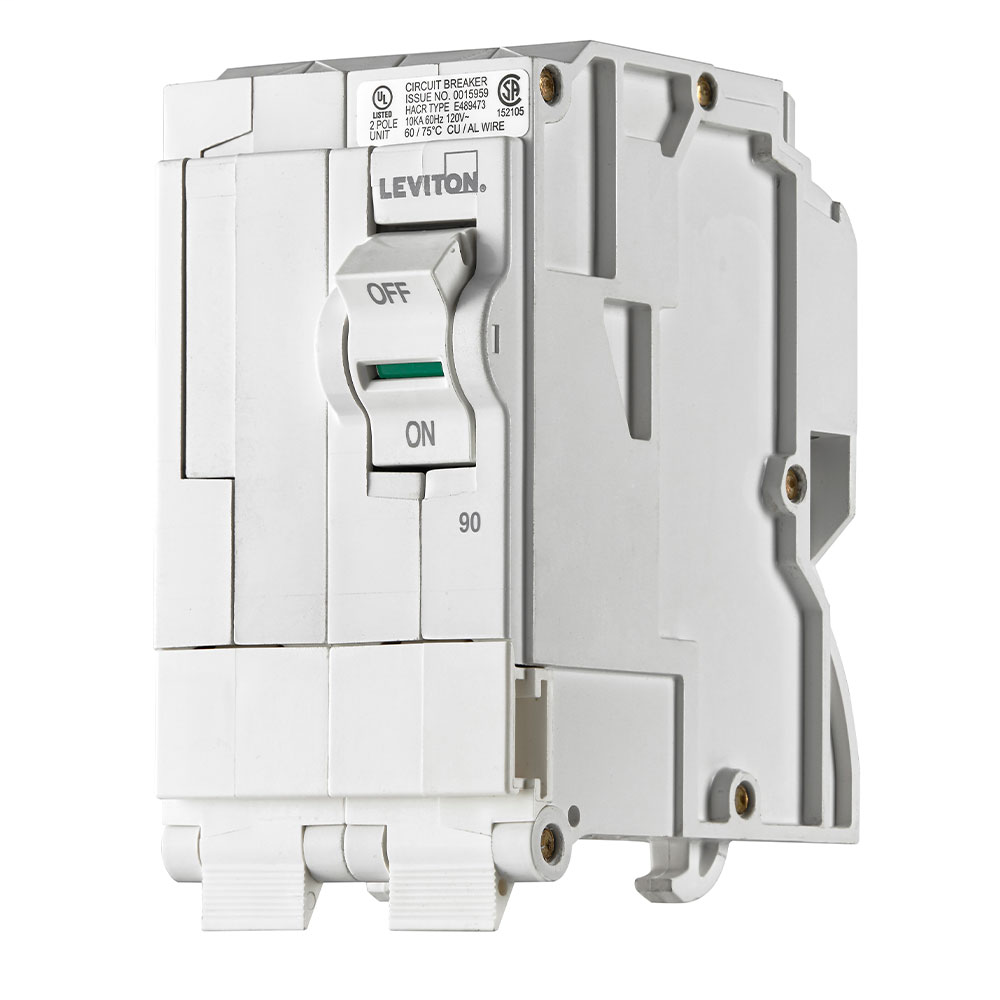

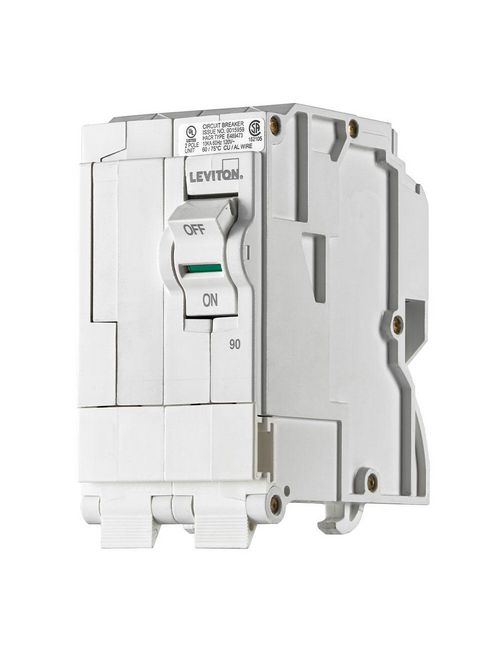

LEV LB290 BRANCH BREAKER, V1.0 BASI
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$101.25/ea
In Stock | 12 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # LB290
North Coast Part # 1553903

Features

  • SIMPLE - An all plug-on design - no wiring to the circuit breaker (applications up to 60A when using copper wire or 50A when using aluminum wire)
  • PRECISION - More precise trips based on current, even in extreme temperatures: -40ºC to 85ºC, without re-rating
  • EASY - Color indicators in the handle to easily see operational status at-a-glance.

Specifications

Electrical Specifications

  • Amperage: 90 A
  • Pole: 2
  • Type: Standard
  • Voltage: 120/240 VAC
  • Short Circuit Current Rating: 10 KA

Product Features

  • Warranty: 10-Year Limited
  • Dimensions: 3.9" H x 2.0" W x 3.1" D
  • Weight: 0.85 lbs.
  • Country Of Origin: Mexico
  • Wiring: All Plug-on
  • Operating Temperature: -40°C to 85°C
  • Smart: No

Standards & Certifications

  • CSA-C22.2 No. 5-02: Yes
  • EMC Compatibility: Yes
  • FCC: Yes
  • UL 489: Yes
  • RoHS: Yes

Categories

Overview

UPC 07847781451
Item Long Description Branch Circuit Breaker, Standard 2-Pole 90A 120/240V, 10KA Interrupt Rating
GTiN 00078477814512
Warranty Length 10 yr
Operating Temperature -40 C
Type Standard
Weight 0.85 lb
Country of Origin Mexico
Family Brand Name Leviton
Amperage 90 Amp
Short Circuit Current 10 kA
Number of Poles 2 Pole
Voltage 120/240 Volt
