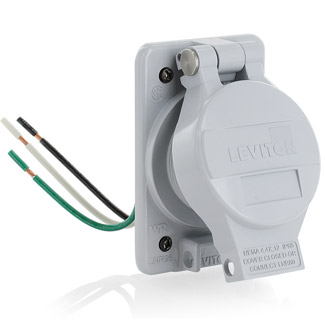

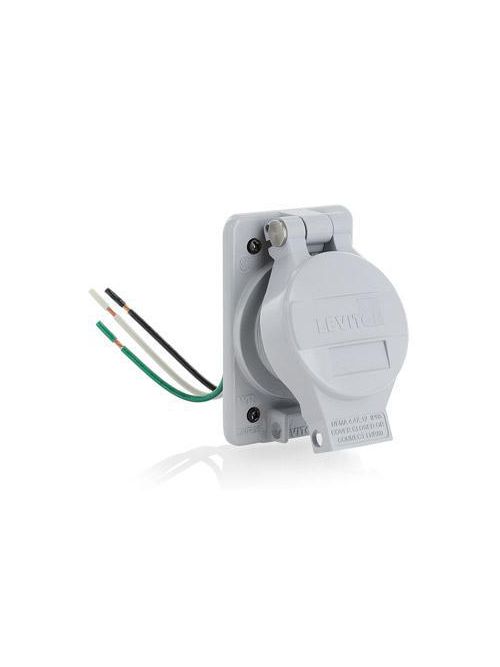

LEV LNR96-4 NEMA6-20RRECPTW/LID
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$177.63/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # LNR96-4
North Coast Part # 1688424

Specifications

Material Specifications

  • Terminal Screws: Electroless Nickel-coated Brass
  • Blades/Contacts, Terminal Clamps: Electroless Nickel-coated Brass
  • Wiring Module: Nylon
  • Assembly Screws: Stainless Steel, Non-Magnetic
  • Receptacle Housing: Coated Die-Cast Aluminum

Warranty

  • Warranty: Limited Lifetime

Standards and Certifications

  • ANSI: C-73
  • UL: 498
  • CSA: C22.2 No. 42
  • NEMA: WD-6
  • NOM: NOM-ANCE

Product Features

  • Color: Gray
  • Device Type: Straight Blade Receptacle
  • Brand: Rhino-Hide
  • Country Of Origin: United States
  • NEMA: 6-20R

Mechanical Specifications

  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Cord Grip Range (in): .375-.670
  • Terminal Accom.: #18 AWG to # 10 AWG

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 250 VAC

Environmental Specifications

  • Environment: Wet
  • Operating Temperature: -40°C to 60°C
  • Enclosure Rating: NEMA 3R, 4, 4X, 6, 6P, 12, 13; IEC IP66, IP67, IP68, IP69K

Overview

UPC 07847769306
Item Long Description 20 Amp, 250 Volt, NEMA 6-20R, 2P, 3W, Receptacle, Straight Blade, Industrial Grade, Grounding, Rhino-Hide - GRAY
GTiN 00078477693063
Warranty Length Lifetime Limited
Color Gray
Operating Temperature -40 C
Voltage 250 Volt
Type STRAIGHT BLADE RECEPTACLE
Country of Origin USA
Standard ANSI C-73
Family Brand Name Leviton
Wire Count 3
NEMA 6-20R,WD-6
Dielectric 2000 V
Housing Material Powder-Coated Cast Aluminum
Environment Wet
Actuator Non-Magnetic,Stainless Steel
Amperage 20 Amp
CSA C22.2 No. 42
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Straight Blade Receptacle
