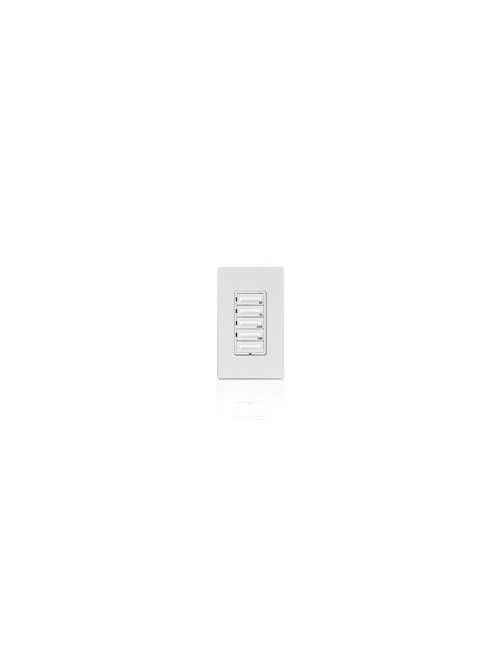

LEV LTB02-1LZ DEC 20A 15-30-60-120
Product image thumbnail 0
Product image thumbnail 1
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # LTB02-1LZ
North Coast Part # 604830

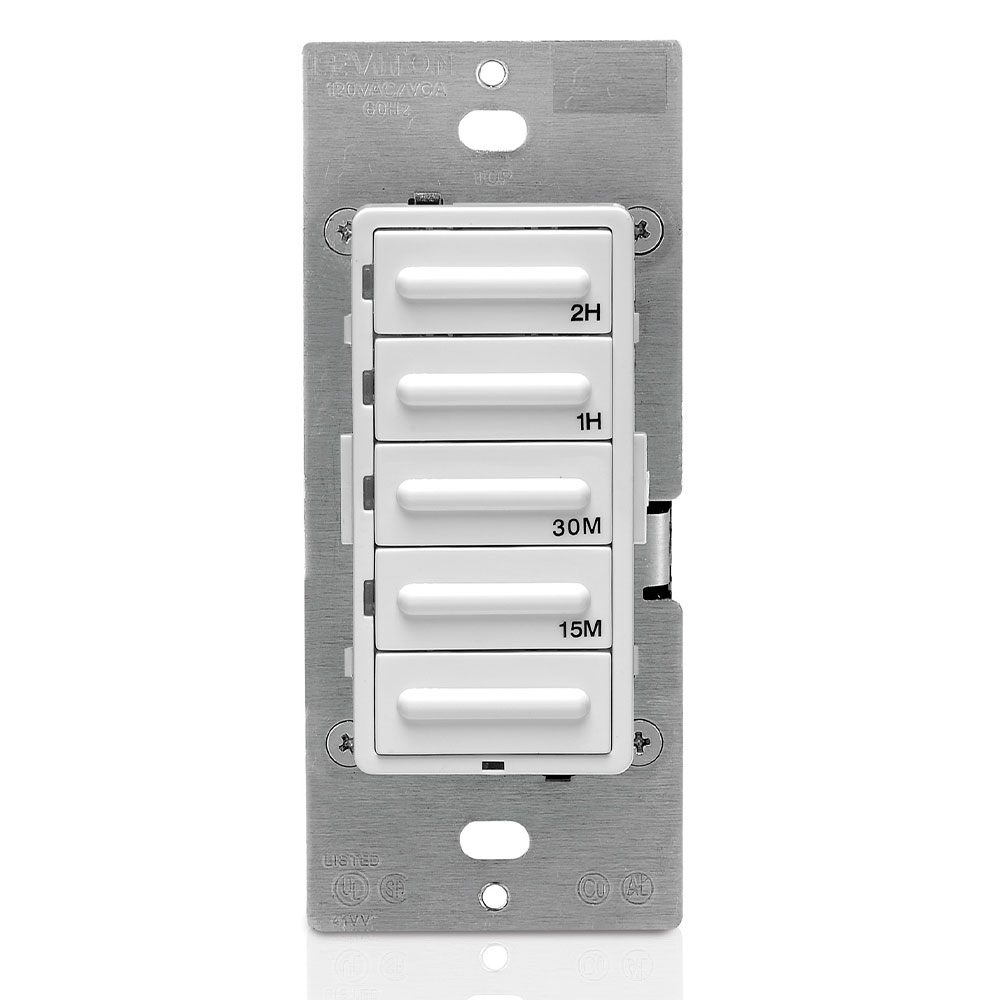

  • Easy operation with four preset buttons and one "OFF" button
  • 1800 Watt Incandescent, 600W CFL, 5A LED, 20Amp Resistive/Inductive, 1 Horsepower at 120 volts
  • Simple press and hold override function
  • Flexibility to convert the 2-hour timer to other available timer intervals
  • Single pole and 3-way with a Vizia + Switch Remote (VP0SR)
  • Three colors in one box: White, Ivory and Light Almond
  • Soothing green LEDs
  • Neutral wire required for installation



  • Warranty: 5-Year Limited

Product Features

  • Ordering Notes: Wallplate Sold Separately
  • Color: White, Ivory, Light Almond
  • Country Of Origin: China
  • Feature: Single-Pole and 3-Way with a Vizia + Switch Remote
  • Preset: Yes
  • Voltage: 120 VAC
  • Type: Decora Preset Countdown Timer



UPC 07847745916
GTiN 00078477459164
Warranty Length 5 yr
Size 4.13 H x 1.75 W x 1.40 D IN
Color White/Ivory/Light Almond
Operating Temperature 0 To 40 C
Voltage 120 Volt
Type Electronic, 1-Pole, 3 Way with Remote
Applications For Commercial use
Mounting Type Wall
Country of Origin China
Standard UL Listed (E-328809), CSA Certified (MC-152105), NOM Certified, ASHRAE Standard 90.1
Wattage 1800 Watt
Base Screw
Temperature Rating 0 - 40 C
Family Brand Name Leviton
Amperage 20 Amp
Blade Dimensions 1-3/4 in W x 1.4 in D x 4.13 in H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Contact Rating 1800 W Incandescent, 600 W LED
Number of Poles 1-3 Pole
Action SP
Sub Brand Decora
