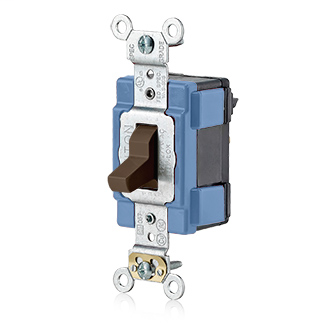

LEV M1201 LEV-LOK 15A SP SWITCH
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$18.48/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # M1201
North Coast Part # 1338951

Specifications

Material Specifications

  • Ground Clips: Brass
  • Color: Brown
  • Cover Material: Nylon
  • Strap Material: Galvanized Steel
  • Dome: Nylon
  • Base Material: PBT
  • Toggle: Polycarbonate
  • Contact Material: Silver Alloy

Standards and Certifications

  • Warranty: 10-Year Limited
  • cULus: File # E7458
  • NEMA: WD-1 & WD-6
  • NOM: 057
  • ANSI: C-73
  • RoHS: Compliant

Electrical Specifications

  • Amperage: 15 A
  • Dielectric Voltage: Withstands 1500V for 1 minute
  • Temperature Rise: Maximum 30 degrees C rise
  • Endurance: 50,000 cycles minimum
  • Voltage: 120/277 VAC
  • Grounding: Self-Grounding
  • Overload UL20 Test: 100 cycles of OL at 4.8 times rated current

Product Features

  • Function: Single-Pole
  • Color: Brown
  • Brand: Lev-Lok
  • Country Of Origin: Mexico
  • Grade: Extra Heavy-Duty Industrial Specification Grade
  • Device Type: Toggle Switch

Mechanical Specifications

  • Termination: Modular
  • Product ID: Markings are permanently marked on device

AC Horsepower Ratings

  • HP Rating: 1/2HP-120V 2HP-240V

Environmental Specifications

  • Flammability: Rated V-2 per UL94
  • Operating Temperature: -40°C to 65°C

videos

Overview

UPC 07847749406
GTiN 00078477494066
Warranty Length 10 yr
Size 46 H x 1.50 W x 1.54 D IN
Color Brown
Operating Temperature -40 C
Voltage 120/277 Volt
Type Modular Toggle Switch
Applications Commercial
Mounting Type Box
Grade Extra Heavy-Duty Industrial Specification
Country of Origin Mexico
Standard ANSI C-73
Connection Type Modular Terminal
Horsepower 1/2 hp
Base Material PBT
Toggle Material Polycarbonate
Family Brand Name Leviton
NEMA WD-1,WD-6
Dielectric 1500 V
Flamability Class Rated V-2 Per UL94
Grounding Self-Grounding
Contact Material Silver Alloy
TC Connection Modular Terminal
Actuator Toggle
Amperage 15 Amp
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 1 Pole
Temperature Rise 30 C
Device Type Toggle Switch
Cover Material Nylon
Action SP
Sub Brand Lev-Lok
