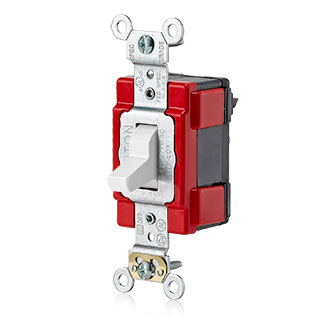

LEV M1223-LHW LEV LOK 3W TOGGLE III
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$64.38/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # M1223-LHW
North Coast Part # 1350006

Specifications

Material Specifications

  • Ground Clips: Brass
  • Color: White
  • Cover Material: Nylon
  • Strap Material: Galvanized Steel
  • Dome: Nylon
  • Base Material: PBT
  • Toggle: Polycarbonate
  • Contact Material: Silver Alloy

Standards and Certifications

  • Warranty: 10-Year Limited
  • cULus: File # E7458
  • NEMA: WD-1 & WD-6
  • NOM: 057
  • ANSI: C-73
  • RoHS: Compliant

Electrical Specifications

  • Amperage: 20 A
  • Dielectric Voltage: Withstands 1500V for 1 minute
  • Temperature Rise: Maximum 30 degrees C rise
  • Endurance: 50,000 cycles minimum
  • Voltage: 120 VAC
  • Grounding: Self-Grounding
  • Overload UL20 Test: 100 cycles of OL at 4.8 times rated current

Product Features

  • Function: 3 Way
  • Color: White
  • Brand: Lev-Lok
  • Country Of Origin: Mexico
  • Feature: Illuminated - Load OFF
  • Device Type: Toggle Switch
  • Grade: Extra Heavy-Duty Industrial Specification Grade

Mechanical Specifications

  • Termination: Modular
  • Product ID: Markings are permanently marked on device

AC Horsepower Ratings

  • HP Rating: 1HP-120V

Categories

Overview

UPC 07847749512
GTiN 00078477495124
Warranty Length 10 yr
Color White
Voltage 120 Volt
Type Modular Toggle Switch
Applications Extra Heavy Duty Specification Grade
Grade Extra Heavy-Duty Industrial Specification
Country of Origin Mexico
Standard ANSI C-73
Horsepower 1 hp
Base Material PBT
Toggle Material Polycarbonate
Family Brand Name Leviton
NEMA WD-1,WD-6
Dielectric 1500 V
Grounding Self-Grounding
Contact Material Silver Alloy
Amperage 20 Amp
Temperature Rise 30 C
Device Type Toggle Switch
Cover Material Nylon
