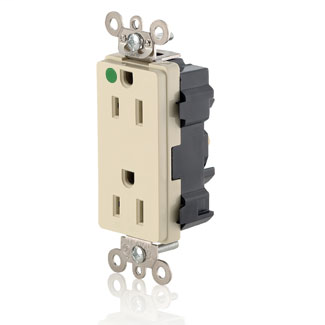

LEV M1626-HGI LEVLOK DEC HG 15A 125
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$40.85/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # M1626-HGI
North Coast Part # 1338954

Specifications

Material Specifications

  • Ground Clips: Nickel-Plated Brass
  • Line Contacts: 0.040” Thick Solid Brass
  • Locking Pins: Solid Brass
  • Mounting Strap: Single Piece Nickel-Plated Brass with integral ground contact
  • Cover Material: Nylon
  • Base Material: Nylon
  • Mounting Screws: Triple Combination Head, Steel

Standards and Certifications

  • NOM Certified: 057
  • ANSI: C-73
  • Warranty: 10-Year Limited
  • NEMA: WD-1 & WD-6
  • cULus: Listed

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Grounding: Self-Grounding
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Voltage: 125 VAC
  • Maximum Working Voltage: 125V as rated

Product Features

  • NEMA: 5-15R
  • Feature 4: Smooth Face
  • Color: Ivory
  • Brand: Lev-Lok Decora Plus
  • Country Of Origin: Mexico
  • Grade: Extra Heavy-Duty Hospital Grade
  • Device Type: Duplex Receptacle Outlet

Mechanical Specifications

  • Termination: Modular
  • Product ID: Ratings are permanently marked on device

AC Horsepower Ratings

  • Horsepower Rating: 1/2 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL94
  • Operating Temperature: -40°C to 60°C

videos

Categories

Overview

UPC 07847736418
GTiN 00078477364185
Warranty Length 10 yr
Size 462 H x 1.549 W x 1.245 D IN
Color Ivory
Operating Temperature -40 C
Voltage 125 Volt
Type Duplex Outlet,Straight Blade
Material Thermoplastic
Applications Commercial
Mounting Type Wall Box
Grade Extra Heavy-Duty Hospital
Country of Origin Mexico
Wire Size 12 AWG
Standard ANSI C-73
Connection Type Modular Terminal
Horsepower 1/2 hp
Base Material Nylon
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-15R,WD-1,WD-6
Number of Phases 1 Phase
Dielectric 2000 V
Flamability Class Rated V-2 Per UL94
Grounding Self-Grounding
TC Connection Modular Terminal
Amperage 15 Amp
Dielectric Strength 2000 (Min.)
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Duplex Receptacle Outlet
Cover Material Nylon
Sub Brand Lev-Lok;Decora Plus
