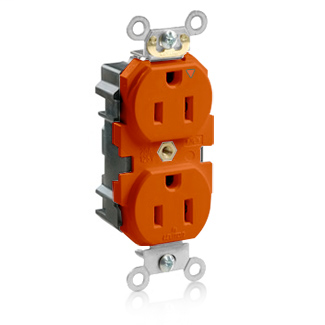

LEV M5262-IG LEVLOK 15A IG DUPLEX

Specifications

Material Specifications

• Ground Clips: Brass
• Line Contacts: 0.040” Thick Solid Brass
• Face Material: Nylon
• Locking Pins: Solid Brass
• Color: Orange
• Shutter Mechanism: Delrin® Acetal
• Strap Material: Galvanized Steel
• Isolated Ground System: Brass
• Body Material: Nylon

Standards and Certifications

• Warranty: 10-Year Limited
• NOM: 057
• CSA C22.2 No. 42: File 152105
• ANSI: C-73
• UL 498: File E13399
• UL Fed Spec WC-596: File E13399
• RoHS: Compliant
• NEMA: WD-6

Electrical Specifications

• Amperage: 15 A
• Wire: 3
• Dielectric Voltage: Withstands 2000V per UL498
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Current Limiting: Full Rated Current
• Body Material: Nylon
• Pole: 2
• Grounding: Self-Grounding
• Voltage: 125 VAC

Product Features

• Function: Isolated Ground
• NEMA: 5-15R
• Feature 4: Smooth Face
• Color: Orange
• Brand: Lev-Lok
• Country Of Origin: Mexico
• Grade: Heavy-Duty Industrial Specification Grade
• Device Type: Duplex Receptacle Outlet

Mechanical Specifications

• Termination: Modular
• Product ID: Markings are permanently marked on device
• Lead Identification: Leads identified in accordance with UL 498 (black, white & green)

AC Horsepower Ratings

• Horsepower Rating: 1/2 HP

Environmental Specifications

• Flammability: Rated V-2 per UL94
• Operating Temperature: -40°C to 60°C
