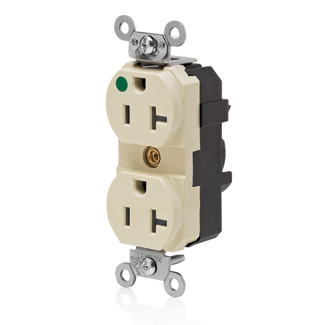

LEV M8300-ILI IV LEV-LOK REC DUP HG
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$49.50/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # M8300-ILI
North Coast Part # 1342257

Specifications

Material Specifications

  • Ground Clips: Brass
  • Line Contacts: 0.040" Brass
  • Face Material: Nylon
  • Locking Pins: Solid Brass
  • Shutter Mechanism: Delrin® Acetal
  • Strap Material: Nickel Plated Brass
  • Body Material: Nylon

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • UL 498 & Fed Spec WD496: E13399
  • CSA: 152105
  • ANSI: C-73
  • RoHS: Compliant
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding
  • Illumination: 100,000 HR Green LED's

Product Features

  • Feature 3: Illuminated
  • NEMA: 5-20R
  • Feature 4: Smooth Face
  • Color: Ivory
  • Brand: Lev-Lok
  • Country Of Origin: Mexico
  • Grade: Extra Heavy-Duty Hospital Grade
  • Device Type: Duplex Receptacle Outlet

Mechanical Specifications

  • Termination: Modular
  • Product ID: Markings are permanently marked on device
  • Lead Identification: Leads identified in accordance with UL 498 (black, white & green)

AC Horsepower Ratings

  • Horsepower Rating: 1 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL94
  • Operating Temperature: -40°C to 60°C

videos

Categories

Overview

UPC 07847754361
GTiN 00078477543610
Warranty Length 10 yr
Size 46 H x 1.53 W x 1.22 D IN
Color Ivory
Operating Temperature -40 C
Voltage 125 Volt
Type Duplex Outlet,Straight Blade
Material Thermoplastic
Applications Commercial
Mounting Type Wall Box
Grade Extra Heavy-Duty Hospital
Country of Origin Mexico
Wire Size 12 AWG
Standard ANSI C-73
Connection Type Modular Terminal
Horsepower 1 hp
Face Material Nylon
Body Material Nylon
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 3
NEMA 5-20R,WD-6
Number of Phases 1 Phase
Dielectric 2000 V
Flamability Class Rated V-2 Per UL94
Grounding Self-Grounding
TC Connection Modular Terminal
Amperage 20 Amp
Dielectric Strength 2000 (Min.)
Environmental Conditions Flammability (Rated V-2 Per UL94)
CSA 152105
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Duplex Receptacle Outlet
Sub Brand Lev-Lok
