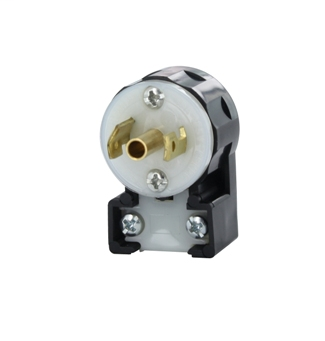

LEV ML2-AP ML2P LOCKING PLUG
Product image thumbnail 0
Product image thumbnail 1
$25.76/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # ML2-AP
North Coast Part # 1353080

Specifications

Material Specifications

  • Wire Module: Nylon
  • Color: Black-White
  • Clamp Insert: Nylon
  • Blades/Contacts: Solid Brass
  • Back Cover: Thermoplastic
  • Terminal Screws: Brass
  • Body Material: Impact Modified Nylon
  • Cord-Clamp: Nylon
  • Assembly Screws: Steel, Zinc Plated

Standards and Certifications

  • Warranty: Limited Lifetime Warranty
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13393
  • NEMA: WD-6

Product Features

  • Color: Black-White
  • Device Type: Locking Plug
  • Brand: Black and White
  • Country Of Origin: United States
  • Feature: Angled

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Cord Range: .218 - .430
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Wire Gauge: 18-14 AWG
  • Terminal Accom.: 18-14 AWG

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Current Interrupting: Certified for current interrupting at full rated current
  • Temperature Rise: Max 30C at 250 cycles OL at 200 pct rated current
  • Pole: 2
  • Voltage: 125 VAC
  • Grounding: Grounding

Environmental Specifications

  • Environment: Dry
  • Flammability: Rated HB or better UL94
  • Operating Temperature: -40°C to 60°C

videos

Categories

Overview

GTiN 00078477987186
Warranty Length Lifetime Limited
Size 1.63 H x 1.11 W x 13 D IN
Color Black,White
Operating Temperature -40 C
Voltage 125 Volt
Type Locking Plug
Material Nylon
Applications Industrial
Mounting Type Cable
Country of Origin USA
Wire Size 18-10 AWG
Standard ANSI C-73
Blade Type Solid Brass
Body Material Impact Modified Nylon
Screw Type Steel,Zinc-Plated
Family Brand Name Leviton
Wire Count 3
NEMA WD-6
Dielectric 2000 V
Environment Dry
Flamability Class Rated HB Or Better UL94
Grounding Grounding
Contact Material Solid Brass
Amperage 15 Amp
Environmental Conditions Operating Temperature Range (-40 to 60) C
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Locking Plug
Sub Brand Black & White Midget
Product UPC 07847798718
