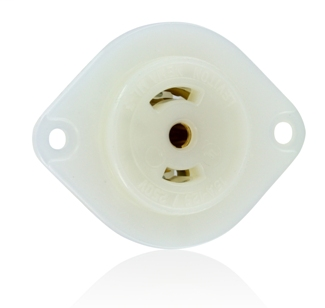

LEV ML2-PER NYLON FLANGED OUTLET
$22.50/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # ML2-PER
North Coast Part # 547898

Specifications

Material Specifications

  • Line Contacts: Brass .035 Thick
  • Face Material: Nylon
  • Color: White
  • Strap Material: Thermoplastic Nylon
  • Grounding Screw: Brass 8-32
  • Terminal Screws: Brass 10-32
  • Body Material: Impact Modified Nylon

Standards and Certifications

  • Warranty: Limited Lifetime Warranty
  • NOM: 057
  • CSA C22.2 No. 42: File LR-406
  • UL498: File E13399
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13399
  • NEMA: WD-6

Product Features

  • Color: White
  • Device Type: Locking Flanged Outlet
  • Brand: Black and White
  • Country Of Origin: United States

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Product ID: Ratings and NEMA I.D. permanently marked on device
  • Terminal Accom.: 18-14 AWG
  • Termination: Back

Electrical Specifications

  • Amperage: 15 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Grounding

Environmental Specifications

  • Environment: Dry
  • Flammability: Rated HB or better UL94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847798732
GTiN 00078477987322
Warranty Length Lifetime Limited
Size 1.625 H x 1.765 W x 1.203 D IN
Color White
Operating Temperature -40 C
Voltage 125 Volt
Type Locking Flanged Outlet
Material Nylon
Applications Industrial
Country of Origin USA
Wire Size 18-10 AWG
Standard ANSI C-73
Face Material Nylon
Body Material Impact Modified Nylon
Family Brand Name Leviton
Wire Count 3
NEMA WD-6
Dielectric 2000 V
Environment Dry
Flamability Class Rated HB Or Better UL94
Grounding Grounding
Contact Material Brass
Amperage 15 Amp
Environmental Conditions Operating Temperature Range (-40 to 60) C
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Locking Flanged Outlet
Sub Brand Black & White Midget
