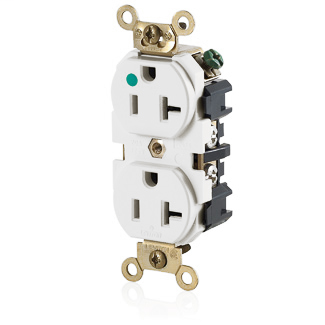

LEV MRI83-W 20A HG MRI DUP RECEPT
$34.98/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # MRI83-W
North Coast Part # 760273

Specifications

Material Specifications

  • Ground Clips: Brass
  • Line Contacts: Brass Triple Wipe .031 Thick
  • Face Material: Nylon
  • Terminal Screws: Brass 10-32
  • Grounding Screw: Brass 8-32
  • Body Material: Nylon
  • Yoke: Brass
  • Clamp Nuts: Brass

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498HG: File E13399
  • ANSI: C-73
  • UL Fed Spec WC-596: File E13399
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 20 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Self-Grounding

Product Features

  • Amperage: 20 A
  • Function: MRI
  • Face Material: Nylon
  • NEMA: 5-20R
  • Feature 4: Smooth Face
  • Color: White
  • Standards and Certifications: UL/CSA
  • Strap Material: Brass
  • Country Of Origin: Please Contact Customer Service.
  • Grade: Extra Heavy-Duty Hospital Grade
  • Device Type: Duplex Receptacle Outlet
  • Body Material: Nylon
  • Wire: 3
  • Pole: 2
  • Grounding: Self-Grounding
  • Warranty: 10-Year Limited
  • Voltage: 125 VAC

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, White-Neutral
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-10 AWG
  • Termination: Back or Side Wire

AC Horsepower Ratings

  • Horsepower Rating: 1 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847739320
GTiN 00078477393208
Warranty Length 10 yr
Size 46 H x 1.53 W x 1.11 D IN
Color White
Operating Temperature 60 C
Voltage 125 Volt
Type Duplex Receptacle
Material Nylon
Applications Commercial
Mounting Type Box
Grade Extra Heavy-Duty Hospital
Wire Size 14-10 AWG
Standard UL,ANSI C-73,CSA
Connection Type Back Wired,Side Wired
Horsepower 1 hp
Face Material Nylon
Body Material Nylon
Temperature Rating -40 To 60 C
Family Brand Name Leviton
Wire Count 3
NEMA WD-6,5-20R
Dielectric 2000 V
Flamability Class Rated V-2 Per UL94
Grounding Self-Grounding
TC Connection Back Wired;Side Wired
Amperage 20 Amp
Dielectric Strength 2000 (Min.)
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 200 %
Device Type Duplex Receptacle Outlet
