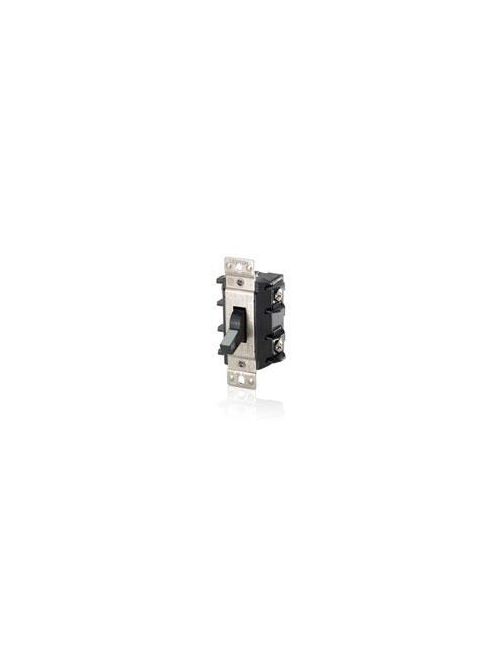

LEV MS302-DS 30A 600V DOUBLE POLE T
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$51.86/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # MS302-DS
North Coast Part # 470613

Specifications

Material Specifications

  • Face Material: Thermoplastic Polyester
  • Contacts: Silver-Cadmium .031 Thick
  • Color: Black
  • Strap Material: Nickel Plated Brass
  • Base Material: Thermoplastic Polyester
  • Terminal Screws: Nickel-Plated Brass 10-32
  • Toggle: Thermoplastic Polyester
  • Yoke: Nickel-Plated Brass

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: NOM-ANCE
  • cUL per CSA C22.2 No. 111: File #E63969
  • NEMA: WD-1 & WD-6
  • ANSI: C-73
  • UL 60947-4-1: supersedes UL 508

Product Features

  • Color: Black
  • Device Type: Toggle Switch
  • Country Of Origin: Mexico

Mechanical Specifications

  • Terminal ID: T1, T2, T3, L1, L2 & L3 marked on back of device
  • Product ID: Ratings are permenantly marked on device
  • Terminal Accom.: #10-#8 AWG
  • Torque Range: 25 inch pounds maximum
  • Termination: Back & Side

Electrical Specifications

  • Amperage: 30 A
  • Dielectric Voltage: Withstands 2200V for 1 min.
  • Temperature Rise: 50ºC Max at full rated current
  • Endurance: 6,000 cycles inductive motor type load
  • Pole: 2
  • Voltage: 600 VAC
  • Grounding: Non-Grounding
  • Overload UL20 Test: 100 cycles of OL at 4.8 times rated current

Environmental Specifications

  • Flammability: Rated V-0 per UL 94
  • Operating Temperature: -40°C to 60°C

videos

Overview

UPC 07847737413
GTiN 00078477374139
Warranty Length 10 yr
Size 3.75 H x 23 W x 2.46 D IN
Color Black
Operating Temperature -40 C
Voltage 600 Volt
Type Double-Pole AC Motor Starter Switch,Standard Toggle
Applications Commercial
Grade Commercial
Country of Origin Mexico
Standard ANSI C-73
Connection Type Back Wired,Side Wired
Torque 25 lb-in
Base Material Thermoplastic Polyester
Face Material Polyester
Toggle Material Thermoplastic Polyester
Family Brand Name Leviton
NEMA WD-1,WD-6
Dielectric 2200 V
Flamability Class Rated V-0 Per UL 94
Grounding Non-Grounding
Contact Material Silver-Cadmium
TC Connection Back Wired;Side Wired
Actuator Toggle
Contact Configuration DPST
Amperage 30 Amp
Blade Dimensions 23 in W x 2.46 in D x 3-3/4 in H
Environmental Conditions Flammability (Rated V-0 per UL94)
Number of Poles 2 Pole
Temperature Rise 50 C
Device Type Toggle Switch
Action DPST
